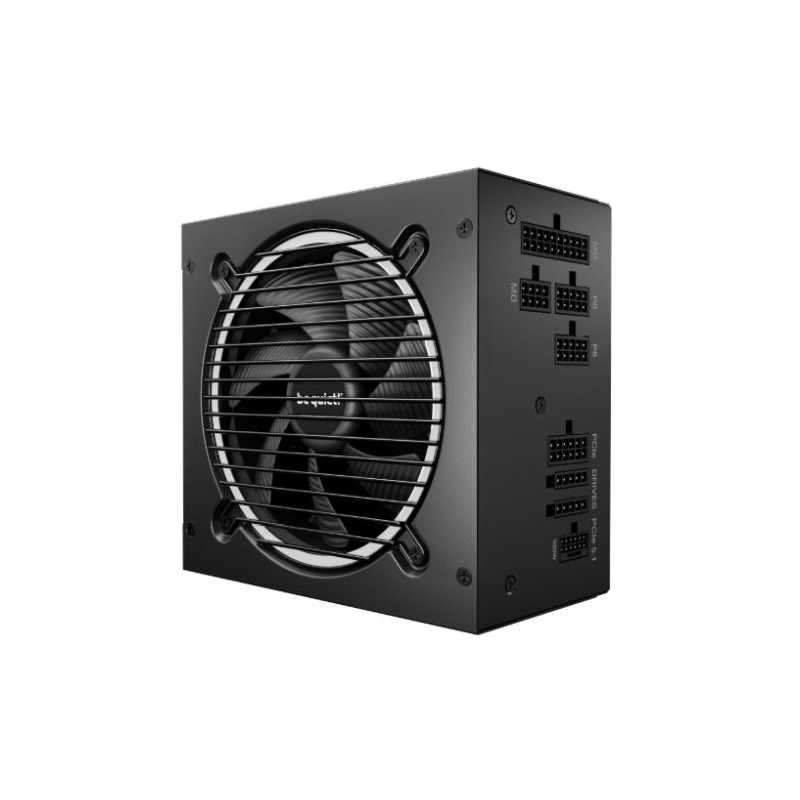

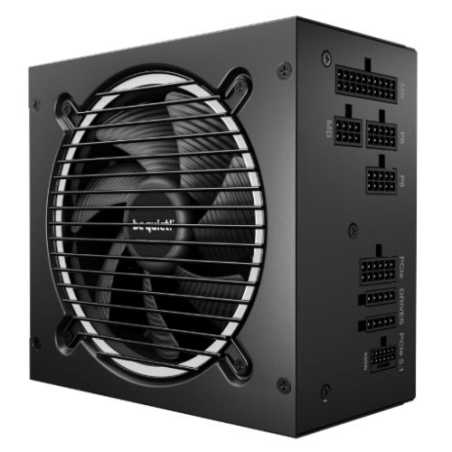

be quiet! Pure Power 13 M 550W is ATX 3.1 compliant and PCIe 5.1 compatible, 10-year manufacturer's warranty
£85.68
VAT included
Delivered within 1-2 days.
The be quiet! Pure Power 13 M 550W 80+ Gold Modular Power Supply is designed to deliver reliable and efficient power for modern PC builds. Fully ATX 3.1 compliant and PCIe 5.1 compatible, it provides excellent support for both current and next-generation graphics cards. With modular cabling, semi-passive cooling, and a high efficiency rating, it’s an ideal choice for quiet and powerful systems.
Key Features
80 PLUS® Gold efficiency (up to 93.8%).
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors.
Exceptionally silent 120mm be quiet! fan with semi-passive operation.
Advanced stability and voltage regulation thanks to LLC technology.
One high-performance 12V rail.
One PCIe 5.1 12V-2x6 (300W) and 2 PCIe 6+2 connectors for modern GPUs.
10-year manufacturer’s warranty.
Full Specification
Model:
Pure Power 13 M 550W 80+ Gold Modular Power Supply
Output Power:
550W continuous, 600W peak
Efficiency:
80+ Gold (up to 93.8% efficiency)
Voltage Rails:
Single 12V rail, 45.8A output
ATX Form Factor:
ATX 3.1
Connectors:
1 x 24-pin ATX
1 x 4+4-pin CPU +12V (EPS)
1 x PCIe 5.1 12V-2x6 (300W)
2 x PCIe 6+2-pin
5 x SATA
2 x Molex (PATA)
Fan:
120mm be quiet! silence-optimised fan, rifle bearing
Cooling:
Semi-passive, temperature-controlled operation
Fan Noise:
14.8 dB(A) at 20–50% load
20.8 dB(A) at 100% load
Power Input:
100–240V AC, 50/60Hz
Power Output:
+3.3V: 20A
+5V: 20A
+12V: 45.8A (550W max combined)
-12V: 0.3A
+5Vsb: 3A
Cable Set:
Fully modular flat and sleeved cables
Max length: 95cm
Special Features:
Future-proof ATX 3.1 and PCIe 5.1 support
Semi-passive silent operation
Robust 12V rail design
Full suite of safety protections
Warranty:
10-year manufacturer’s warranty
Dimensions (L x W x H):
160 x 150 x 86 mm
Key Features
80 PLUS® Gold efficiency (up to 93.8%).
ATX 3.1 PSU with full support for PCIe 5.1 GPUs and GPUs with 6+2 pin connectors.
Exceptionally silent 120mm be quiet! fan with semi-passive operation.
Advanced stability and voltage regulation thanks to LLC technology.
One high-performance 12V rail.
One PCIe 5.1 12V-2x6 (300W) and 2 PCIe 6+2 connectors for modern GPUs.
10-year manufacturer’s warranty.
Full Specification
Model:
Pure Power 13 M 550W 80+ Gold Modular Power Supply
Output Power:
550W continuous, 600W peak
Efficiency:
80+ Gold (up to 93.8% efficiency)
Voltage Rails:
Single 12V rail, 45.8A output
ATX Form Factor:
ATX 3.1
Connectors:
1 x 24-pin ATX
1 x 4+4-pin CPU +12V (EPS)
1 x PCIe 5.1 12V-2x6 (300W)
2 x PCIe 6+2-pin
5 x SATA
2 x Molex (PATA)
Fan:
120mm be quiet! silence-optimised fan, rifle bearing
Cooling:
Semi-passive, temperature-controlled operation
Fan Noise:
14.8 dB(A) at 20–50% load
20.8 dB(A) at 100% load
Power Input:
100–240V AC, 50/60Hz
Power Output:
+3.3V: 20A
+5V: 20A
+12V: 45.8A (550W max combined)
-12V: 0.3A
+5Vsb: 3A
Cable Set:
Fully modular flat and sleeved cables
Max length: 95cm
Special Features:
Future-proof ATX 3.1 and PCIe 5.1 support
Semi-passive silent operation
Robust 12V rail design
Full suite of safety protections
Warranty:
10-year manufacturer’s warranty
Dimensions (L x W x H):
160 x 150 x 86 mm
BP024EU
43 Items
Data sheet
- Warranty
- 10 Years
- Form Factor
- ATX
- Package Weight
- 3.0000 kg
- Additional Features
- See Overview
- Series
- Be Quiet! Pure Power 13 M
- Colour
- Black
- Weight/Dimensions
- 2.23 kg(LxWxH) 160 x 150 x 86 mm
- Package Contents
- Power SupplyCablesScrewsCable tiesUser manual
- Compatibility
- ATX 3.1PCIe 5.1EPS 12V v2.92
- Connectors
- 1 x ATX-Motherboard (20+4-pin)1 x P4+4 (CPU)1 x 12V-2x6 cables2 x PCI-e 6+2-pin (GPU)5 x SATA2 x PATA
- Wattage
- 550W
- Efficiency
- 80+ Gold230V, 2% load: 70.3%230V, 10% load: 90.1%230V, 20% load: 92.8%230V, 50% load: 93.8%230V, 100% load: 92.1%
- Modular
- Fully
- Rail Design
- One massive high-performance 12V-rail
- AC Input
- 100-240 VAC
- Fan Type
- Exceptionally Silent Semi-Passive 120mm Fan
- Noise
- 10% load: -20% load: 14.8 dB(A)50% load: 14.8 dB(A)100% load: 20.8 dB(A)
- Fan Bearing
- Rifle Bearing
- MTBF
- 100,000 Hours
- Certification
- Gold
- Protection
- OTP (over temperature protection)OCP (over current protection)OPP (over power protection)SCP (short circuit protection)OVP (over Voltage protection)UVP (under Voltage protection)SIP (Surge & Inrush Protection)
- SATA Connections
- 5
- Wattage Range
- 450 - 560W
- Size/Version
- ATX 3.1
- ATX 3.1/3.0
- ATX 3.1
- Max Certification
- Gold
