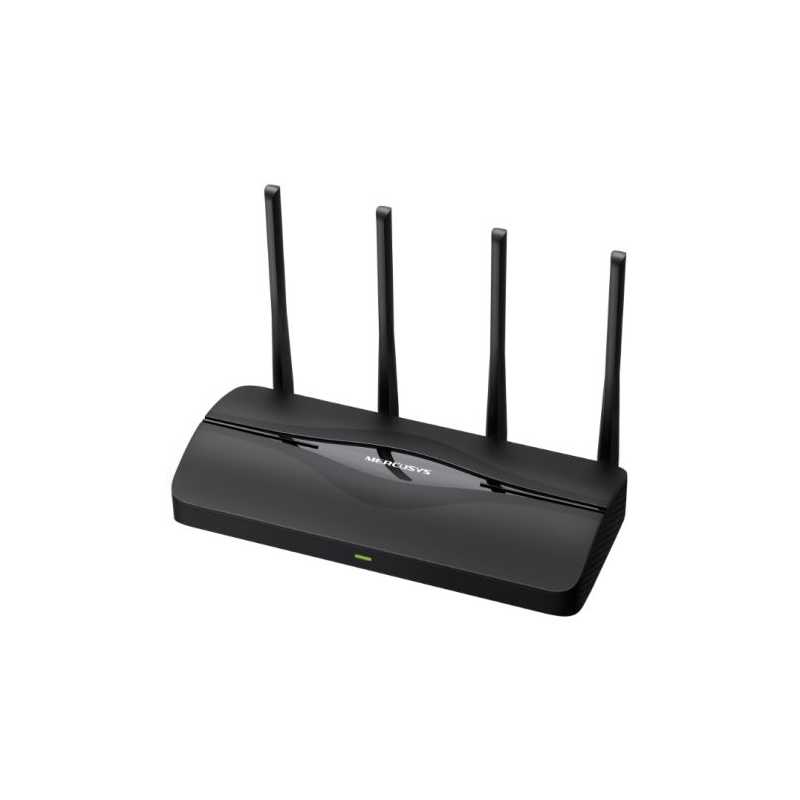

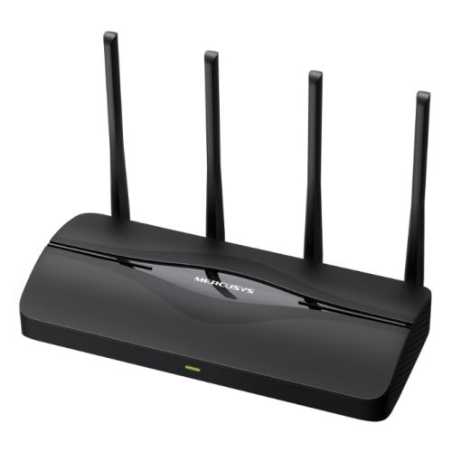

Mercusys MR27BE BE3600 Dual-Band Wi-Fi 7 Router
£92.53
VAT included
Delivered within 1-2 days.
Mercusys BE3600 Dual Band Wi-Fi 7 Router
Fast 3.6 Gbps Dual-Band Speeds
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Newest WiFi 7
Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.
Multi-Link Operation (MLO)
Increases throughput, reduces latency, and improves reliability for emerging applications.
2.5G Ports
1x 2.5 Gbps WAN port, 1x 2.5 Gbps LAN port and 2x 1 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
Maximized Coverage
4x Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible
Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
Easy Setup and Use
Network management has never been easier with the MERCUSYS app.
Specifications
Wireless
Wi-Fi Class
BE3600
Wi-Fi (2.4 GHz)
688Mbps
Wi-Fi ( 5 GHz)
2880Mbps
Wireless Standards
802.11be/ax/ac/a/b/g/n
Max Channel Width
160MHz
Reception Sensitivity
5G:
11ac VHT20_MCS0:-97dBm, 11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-66dBm
11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-63dBm
11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-59dBm
11be EHT20_MCS13:-61dBm
11be EHT40_MCS13:-59dBm
11be EHT80_MCS13:-55dBm
11be EHT160_MCS13:-52dBm
2.4G:
11ax HE20 MCS0:-97dBm,11ax HE20 MCS11:-68dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-65dBm
11be EHT20 MCS13:-61dBm,11be EHT40 MCS13:-59dBm
Max Wi-Fi Modulation
4K QAM
Wireless Security
WPA/WPA2/WPA3
Wireless Functions
Guest Network
IoT Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness
Hardware
Dimensions
250 x 119 x 43.3 mm
(9.8 x 4.7 x 1.7 in)
Interfaces
1x 2.5G WAN
1x 2.5G LAN
2x GE LAN
Antenna
2x 5G External Antennas(5dBi)
2x 2.4G External Antennas(4dBi)
Button
1x WPS/ Reset Button
Installation
Desktop
Wall-mount
LED
1x SYS
Retail Package Dimension
328*261*74mm
Units per Carton
10
Carton Dimension
535*340*385mm
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
Power
Input:100~240V, 50/60Hz
Output: 12V/1.5A
Software
Operation Mode
Router/AP mode
WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Protocols
IPv4
IPv6
Guest Network
2.4G Guest Network
5G Guest Network
Parental Controls
Profile Settings
Time Control
Pause the Internet
Website Filtering
DHCP
Address Reservation
DHCP Client List
Server
DDNS
MERCUSYS
NO-IP
DynDNS
VPN Server
OpenVPN
PPTP
L2TP/IPSec
WireGuard
VPN Client
OpenVPN
PPTP
L2TP/IPSec
WireGuard
Easymesh
Easymesh Compatible
QoS
Time Settings
Priority Control
Security
SPI Firewall
Access Control
IP & MAC Binding
Kill Switch
Support
ISP Feature
CWMP
ISP Preset(Agile Config)
Superadmin
System
Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot
Diagnostics
Ping
Traceroute
LED Management
LED Control
Night Mode
Device Management
MERCUSYS APP
Webpage
Cloud
MERCUSYS ID
Language
Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese - Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan
Advanced Features
Multi-Link Operation (MLO)
Multi-RUs
OFDMA
MU-MIMO
BSS Color
Beamforming
Others
Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 - Protocol: TCP
DNS DNS Port: 53 - Protocol: TCP & UDP
DHCP Server IP address assignment (DHCP) Port: 67 Protocol: UDP
App management Manage and configure device through app
Port: 20001 Protocol: TCP - Port: 30001 Protocol: TCP -Port: 20002
Protocol: UDP Package Contents
BE3600 Wi-Fi 7 Router MR27BE
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
Fast 3.6 Gbps Dual-Band Speeds
Enables your devices to run at full speed. Enjoy fluent 4K/8K streaming, immersive AR/VR gaming, and blazing-fast downloads.
Newest WiFi 7
Armed with the 160 MHz channels, 4K-QAM, MLO, and other features that WiFi 7 offers, your network will arrive with a jaw-dropping performance.
Multi-Link Operation (MLO)
Increases throughput, reduces latency, and improves reliability for emerging applications.
2.5G Ports
1x 2.5 Gbps WAN port, 1x 2.5 Gbps LAN port and 2x 1 Gbps LAN ports break through the 1G bottleneck, driving your devices to peak performance.
Maximized Coverage
4x Omni directional antennas, proprietary Wi-Fi optimization, and Beamforming technology deliver broader coverage, more capacity, stronger and more reliable connections, and less interference.
EasyMesh-Compatible
Works with EasyMesh routers and range extenders to form seamless whole home Mesh WiFi, preventing drops and lag when moving between signals.
Easy Setup and Use
Network management has never been easier with the MERCUSYS app.
Specifications
Wireless
Wi-Fi Class
BE3600
Wi-Fi (2.4 GHz)
688Mbps
Wi-Fi ( 5 GHz)
2880Mbps
Wireless Standards
802.11be/ax/ac/a/b/g/n
Max Channel Width
160MHz
Reception Sensitivity
5G:
11ac VHT20_MCS0:-97dBm, 11ac VHT20_MCS8:-75dBm
11ac VHT40_MCS0:-94dBm, 11ac VHT40_MCS9:-70dBm
11ac VHT80_MCS0:-91dBm, 11ac VHT80_MCS9:-67dBm
11ac VHT160_MCS0:-88dBm, 11ac VHT160_MCS9:-63dBm
11ax HE20_MCS0:-96dBm, 11ax HE20_MCS11:-66dBm
11ax HE40_MCS0:-93dBm, 11ax HE40_MCS11:-66dBm
11ax HE80_MCS0:-91dBm, 11ax HE80_MCS11:-63dBm
11ax HE160_MCS0:-87dBm, 11ax HE160_MCS11:-59dBm
11be EHT20_MCS13:-61dBm
11be EHT40_MCS13:-59dBm
11be EHT80_MCS13:-55dBm
11be EHT160_MCS13:-52dBm
2.4G:
11ax HE20 MCS0:-97dBm,11ax HE20 MCS11:-68dBm
11ax HE40 MCS0:-95dBm,11ax HE40 MCS11:-65dBm
11be EHT20 MCS13:-61dBm,11be EHT40 MCS13:-59dBm
Max Wi-Fi Modulation
4K QAM
Wireless Security
WPA/WPA2/WPA3
Wireless Functions
Guest Network
IoT Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness
Hardware
Dimensions
250 x 119 x 43.3 mm
(9.8 x 4.7 x 1.7 in)
Interfaces
1x 2.5G WAN
1x 2.5G LAN
2x GE LAN
Antenna
2x 5G External Antennas(5dBi)
2x 2.4G External Antennas(4dBi)
Button
1x WPS/ Reset Button
Installation
Desktop
Wall-mount
LED
1x SYS
Retail Package Dimension
328*261*74mm
Units per Carton
10
Carton Dimension
535*340*385mm
IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN
Power
Input:100~240V, 50/60Hz
Output: 12V/1.5A
Software
Operation Mode
Router/AP mode
WAN Mode
Dynamic IP
Static IP
PPPoE
PPTP
L2TP
NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP
Protocols
IPv4
IPv6
Guest Network
2.4G Guest Network
5G Guest Network
Parental Controls
Profile Settings
Time Control
Pause the Internet
Website Filtering
DHCP
Address Reservation
DHCP Client List
Server
DDNS
MERCUSYS
NO-IP
DynDNS
VPN Server
OpenVPN
PPTP
L2TP/IPSec
WireGuard
VPN Client
OpenVPN
PPTP
L2TP/IPSec
WireGuard
Easymesh
Easymesh Compatible
QoS
Time Settings
Priority Control
Security
SPI Firewall
Access Control
IP & MAC Binding
Kill Switch
Support
ISP Feature
CWMP
ISP Preset(Agile Config)
Superadmin
System
Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot
Diagnostics
Ping
Traceroute
LED Management
LED Control
Night Mode
Device Management
MERCUSYS APP
Webpage
Cloud
MERCUSYS ID
Language
Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese - Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan
Advanced Features
Multi-Link Operation (MLO)
Multi-RUs
OFDMA
MU-MIMO
BSS Color
Beamforming
Others
Network Services Enabled by Default Web Server Manage and configure device through web (HTTP/HTTPS)
Port: 80/443 - Protocol: TCP
DNS DNS Port: 53 - Protocol: TCP & UDP
DHCP Server IP address assignment (DHCP) Port: 67 Protocol: UDP
App management Manage and configure device through app
Port: 20001 Protocol: TCP - Port: 30001 Protocol: TCP -Port: 20002
Protocol: UDP Package Contents
BE3600 Wi-Fi 7 Router MR27BE
Power Adapter
Quick Installation Guide
RJ45 Ethernet Cable
Environment
Operating Temperature: 0°C~40°C (32°F~104°F)
Operating Humidity: 10%~90% Non-Condensing
Storage Humidity: 5%~90% Non-Condensing
MR27BE
13 Items
Data sheet
- Warranty
- 3 Years
- Package Type
- Retail
- Package Weight
- 1.0100 kg
- Additional Features
- See Overview
- Dimensions
- 250 x 119 x 43.3 mm
- Type
- Cable Router
- Interface(s)
- 1 x 2.5 Gigabit WAN1 x 2.5 Gigabit LAN2 x 1 Gigabit LAN
- Package Contents
- BE3600 Dual Band Wi-Fi 7 Router MR27BEPower AdapterQuick Installation GuideRJ45 Ethernet Cable
- Wireless Functions
- Multi-Link Operation (MLO)160 MHz Channel4K-QAMMulti-RUs
- Button(s)
- Reset/WPS Button
- Connectivity
- Wireless
- Max Wired Transfer Rate
- 2.5 Gbps
- Signal Rate
- 5GHz: up to 2880 Mbps2.4GHz: up to 688 Mbps
- Bands
- Dual Band
- Management
- Access ControlLocal ManagementRemote Management
- Frequency
- 2.4 GHz and 5 GHz
- Environment
- Operating Temperature: 0°C~40°C (32 °F~104 °F)Operating Humidity: 10%~90% Non-CondensingStorage Humidity: 5%~90% Non-Condensing
- Security
- Wireless: WPA-PSK/WPA2-PSK/WPA3-SAEFirewall: SPI Firewall, IP and MAC Address BindingGuest Network: 2.4GHz and 5GHz
- DHCP
- Server, DHCP Client List
- Antenna(s)
- 4 x Fixed Omni-Directional AntennasBeamforming technology
- VPN Support
- OpenVPN/PPTP/L2TP/ WireGuard VPN Server and Clients
- Wireless Standard
- 3600Mbps
- USB Application
- -
- Connection Type
- Cable
- Standards
- 802.11be/ax/ac/a/b/g/n
- Port/NAT Forwarding
- Port Forwarding, Port Triggering, UPnP, DMZ
- Mesh Wi-Fi Support
- Yes (Mesh Wi-Fi)
- Max Single Band Wi-Fi Rate
- 2882 Mbps
- Wi-Fi Rating
- BE3600
