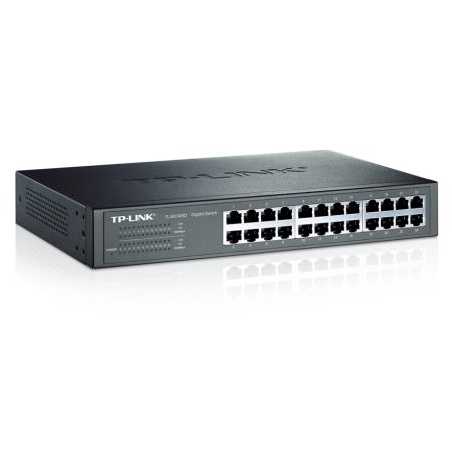

TP-Link TL-SG1024D 24-Port Metal Gigabit Desktop/Rackmount Network Switch
£89.06
VAT included
Highlights:
- 24 10/100/1000Mbps ports
- Innovative energy-efficient technology saves power up to 40%
- Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
- Plug & play design
What This Product Does
The TL-SG1024D 24-Port Gigabit switch provides an easy way to make the transition to Gigabit Ethernet. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 40%* of the power consumption, making it an eco-friendly solution for your business network.
Gigabit Switch
Featured with 24 10/100/1000Mbps ports, TL-SG1024D greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG1024D 24-Port Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1024D can automatically detect the link status of each port and reduce the power consumption of ports that are idle.
- Power Budget According to Cable Length
Ideally, shorter cables would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1024D analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 Mbps or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
* Maximum power savings when compared to a TP-LINK conventional switch, the real saving rate may vary based on the usage condition.
What this product does
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Mounting
Rack Mountable
Max Power Consumption
13.08W(220V/50Hz)
Max Heat Dissipation
44.63BTU/h
Performance
Switching Capacity
48Gbps
Packet Forwarding Rate
35.7Mpps
MAC Address Table
8K
Jumbo Frame
10KB
Green Technology
Yes
Transfer Method
Store-and-Forward
Certification
FCC, CE, RoHS
Package Contents
24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment
Operating Temperature: 0 - 40 (30-104);
Storage Temperature: -40-70 (-40-158);
Operating Humidity: 10%-90%
Storage Humidity: 5%-90% non-condensing
The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1024D work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x
Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)
Fan Quantity
Fanless
Physical Security Lock
No
Power Supply
100-240VAC, 50/60Hz
Dimensions ( W x D x H )
11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
Mounting
Rack Mountable
Max Power Consumption
13.08W(220V/50Hz)
Max Heat Dissipation
44.63BTU/h
Performance
Switching Capacity
48Gbps
Packet Forwarding Rate
35.7Mpps
MAC Address Table
8K
Jumbo Frame
10KB
Green Technology
Yes
Transfer Method
Store-and-Forward
Certification
FCC, CE, RoHS
Package Contents
24-Port Gigabit Desktop/Rackmount Switch
Power Cord
Installation Guide
Rackmount Kits
Rubber Feet
Environment
Operating Temperature: 0 - 40 (30-104);
Storage Temperature: -40-70 (-40-158);
Operating Humidity: 10%-90%
Storage Humidity: 5%-90% non-condensing
TL-SG1024D
Data sheet
- Data Transfer Rate
- 10/100/1000 Mbps
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 2.2700 kg
- Dimensions
- 11.6 x 7.1 x 1.7 in. (294 x 180 x 44 mm)
- Speed
- 10/100/1000
- Power Supply
- 100-240VAC, 50/60Hz
- Interface(s)
- 24 x 10/100/1000Mbps Auto-Negotiation RJ45 ports(Auto MDI/MDIX)
- Package Contents
- 24-Port Gigabit Desktop/Rackmount SwitchPower CordInstallation GuideRackmount KitsRubber Feet
- Ports
- 24 Ports
- Environment (℃)
- Operating Temperature: 0C~40C (32F~104F);Storage Temperature: -40C~70C (-40F~158F);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing
- Management
- No
- Number of Ports
- 24
- Switching Capacity
- 48Gbps
- Environment
- Operating Temperature: 0C~40C (32F~104F);Storage Temperature: -40C~70C (-40F~158F);Operating Humidity: 10%~90% non-condensing;Storage Humidity: 5%~90% non-condensing
- Advanced Functions
- 802.3X Flow Control, Back PressureAuto-Uplink Every Port
- Transfer Method
- Store and Forward
- POE
- No
- RJ45 Data Transfer Rate
- 10/100/1000 Mbps
- Managed/Unmanaged
- Unmanaged
- PoE capable
- No
