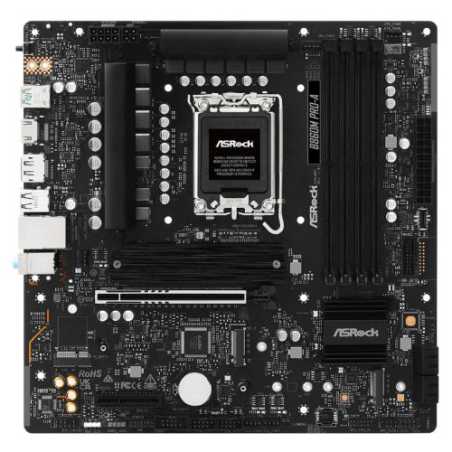

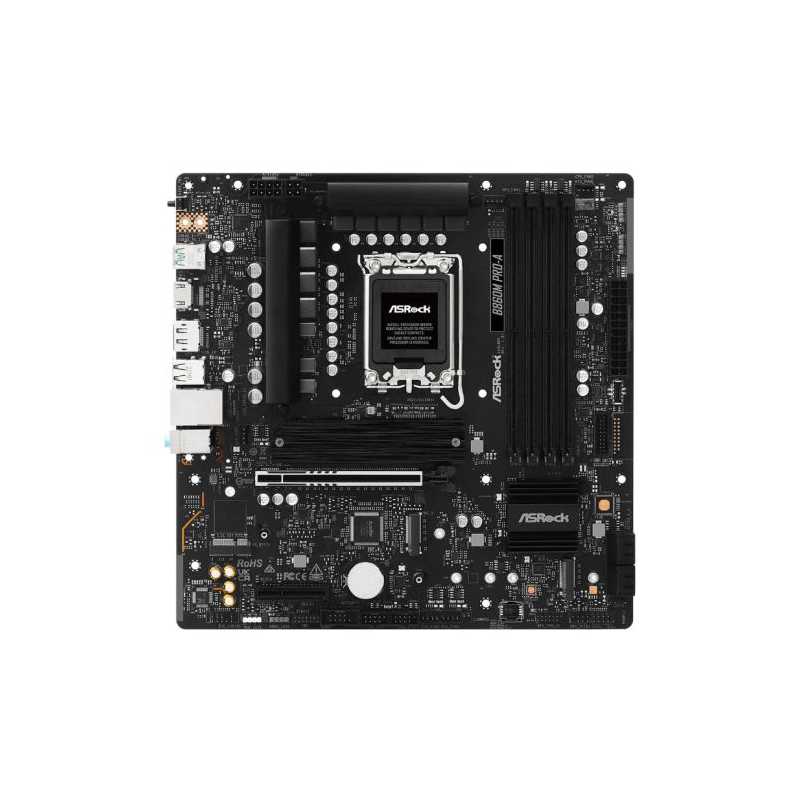

ASRock B860M Pro-A Intel 1851 Socket Motherboard, Micro-ATX, 4x DDR5 Slots, 3x M.2 Sockets, 2x USB-C Port, 2.5GbE LAN, 1x Displa
£140.89
VAT included
Delivered within 1-2 days.
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.
- Supports Intel® Core™ Ultra Processors (Series 2)(LGA1851)
- 10+1+1+1+1 Power Phase, Dr.MOS for VCore+GT+SA
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8666+ (OC)
- 1 PCIe 5.0 x16, 1 PCIe 4.0 x4, 1 M.2 Key E for WiFi
- Graphics Output Options: 1 HDMI, 1 DisplayPort
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5x4)
- 2 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2x2 Type-C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 5 USB 3.2 Gen1 (3 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek 2.5G LAN
- Supports BIOS Flashback
Performance
- 10+1+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
- Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
- Hi-Density Power Connector - CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.
- 6 Layer PCB - The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
- DDR5 XMP & EXPO Support - Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.
High Speed M.2 Solution
- PCIe Gen5 Blazing M.2 - The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
- Hyper M.2 Gen4 x4 - Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Cooling
- Aluminum Heatsink - The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
- PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
- Fan-Tastic Tuning - ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.
Connectivity
- Dragon 2.5 Gb/s LAN - The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
- USB 3.2 Gen2x2 20Gbps Type-C - The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
- Front USB 3.2 Gen1 Type-C - Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
- Dual Graphics Outputs - Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
Stylish Design
- Polychrome RGB - This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
- SignalRGB - SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
DIY Friendly
- Reinforced Steel Slot [PCIe 5.0 Version] - The reinforced steel slot is capable of supporting PCI Express 5.0 standard
- Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
B860M Pro-A
10 Items
Data sheet
- .
- 2 x USB 2.01 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen1
- Wireless
- -
- RAM Speeds
- Up to 8666+(OC)
- Accessories
- 1 x I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
- USB Ports Supported
- Rear:1 x USB 20Gbps Type-C3 x USB 5Gbps Type-A2 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps4 x USB 2.0
- Storage
- 4 x SATA III3 x M.2Intel Core Ultra CPUs (Series 2):M.2_1 (2280) - PCIe 5.0 x4Intel B860 Chipset:M.2_2 (2230/2242/2260/2280) - PCIe 4.0 x4M.2_3 (2280) - PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devices
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1851
- Chipset
- Intel B860
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)Supports XMP 3.0
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 2.5GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Mounting Points1 x HDMI1 x DisplayPort 1.41 x USB 3.2 Gen2x2 Type-C3 x USB 3.2 Gen12 x USB 2.01 x RJ-45 LAN1 x BIOS Flashback ButtonHD Audio Jacks
- Internal I/O Connectors
- 1 x COM Port1 x SPI TPM1 x Power LED and Speaker1 x RGB LED3 x Addressable LED2 x CPU Fan3 x Chassis Fan1 x AIO Pump Fan1 x 24 pin ATX1 x 8 pin 12V1 x 4 pin 12V1 x Front Panel Audio
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- Intel Core Ultra CPUs (Series 2):1 x PCIe 5.0 x16Intel B860 Chipset:1 x PCIe 4.0 x4
