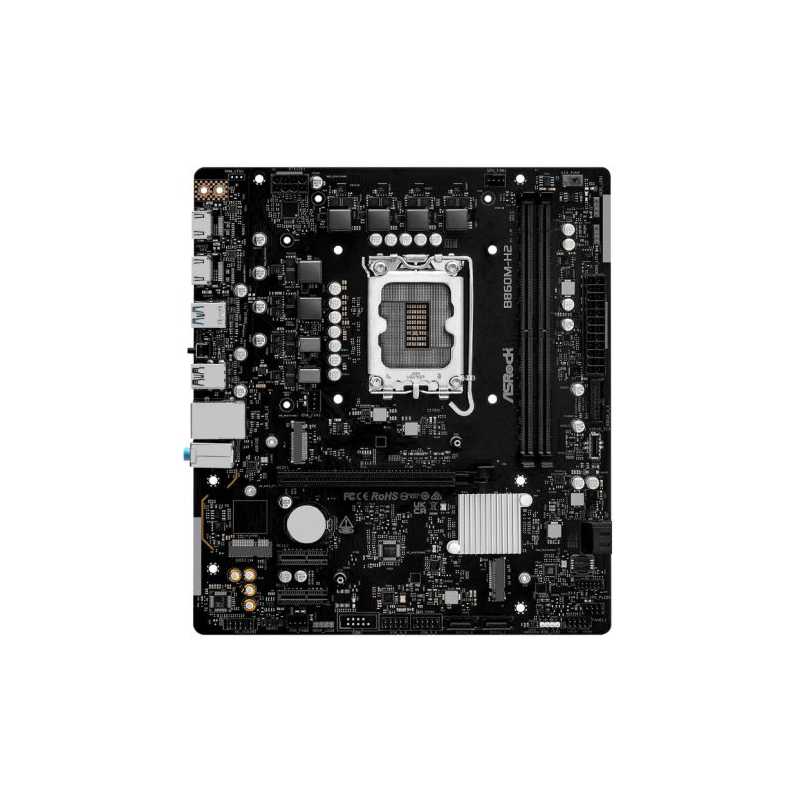

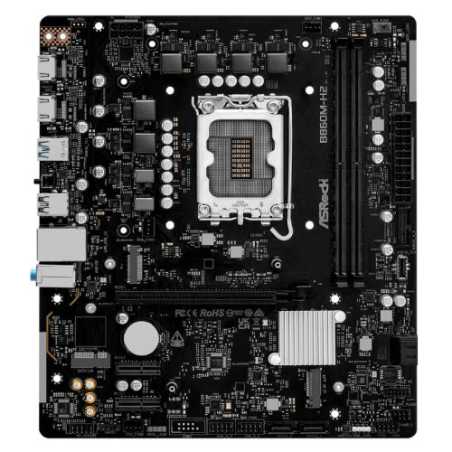

ASRock B860M-H2 Intel 1851 Socket Motherboard, Micro-ATX, 2x DDR5 Slots, 2x M.2 Sockets, 2x USB-C Port, GbE LAN, 2x HDMI Port
£114.42
VAT included
Delivered within 1-2 days.
Built to deliver reliable performance with versatile features, perfect for daily tasks.
- Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)
- 5+1+1+1+1 Power Phase
- 2 x DDR5 DIMMs
- Supports Dual Channel, up to 8333+ (OC)
- 1 PCIe 4.0 x16, 2 PCIe 4.0 x1, 1 M.2 Key E for WiFi
- Graphics Output Options: 2 HDMI
- Realtek ALC897 7.1 CH HD Audio Codec
- 4 SATA3
- 1 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 USB 3.2 Gen2x2 Type-C (Rear)
- 1 USB 3.2 Gen1 Type-C (Front)
- 5 USB 3.2 Gen1 (3 Rear, 2 Front)
- 6 USB 2.0 (2 Rear, 4 Front)
- Realtek Gigabit LAN
- Supports BIOS Flashback
Performance
- 6 Layer PCB - The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!
High Speed M.2 Solution
- PCIe Gen5 Blazing M.2 - The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.
- Hyper M.2 Gen4 x4 - Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Connectivity
- USB 3.2 Gen2x2 Type-C - The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.
- Front USB 3.2 Gen1 Type-C - Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
- Dual HDMI Outputs - Equipped with two of the most widely used HDMI connectors, enjoy better multi-monitor compatibility and an easy setup experience.
Stylish Design
- Polychrome RGB - This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
- SignalRGB - SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.
DIY Friendly
- Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
- BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and a power supply. No CPU, RAM or other components are required.
B860M-H2
15 Items
Data sheet
- Wireless
- -
- RAM Speeds
- Up to 8333+(OC)
- Accessories
- 1 x I/O Shield2 x SATA Data Cables1 x Screw for M.2 Socket
- USB Ports Supported
- Rear:1 x USB 20Gbps Type-C3 x USB 5Gbps Type-A2 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps4 x USB 2.0
- Storage
- 4 x SATA III2 x M.2Intel Core Ultra CPUs (Series 2):M.2_1 (2280) - PCIe 5.0 x4Intel B860 Chipset:M.2_2 (2280) - PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devices
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1851
- Chipset
- Intel B860
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)Supports XMP 3.0
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 128GB
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna Mounting Points2 x HDMI 1 x USB 3.2 Gen2x2 Type-C3 x USB 3.2 Gen1 Type-A2 x USB 2.01 x RJ-45 LAN 1 x BIOS Flashback ButtonHD Audio Jacks
- Internal I/O Connectors
- 1 x SPI TPM1 x Power LED and Speaker1 x RGB LED3 x Addressable LED1 x CPU Fan2 x Chassis Fan1 x AIO Pump Fan1 x 24 pin ATX1 x 8 pin 12V2 x USB 2.01 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen1
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 2 x HDMI
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- Intel Core Ultra CPUs (Series 2):1 x PCIe 4.0 x16Intel B860 Chipset:2 x PCIe 4.0 x1
