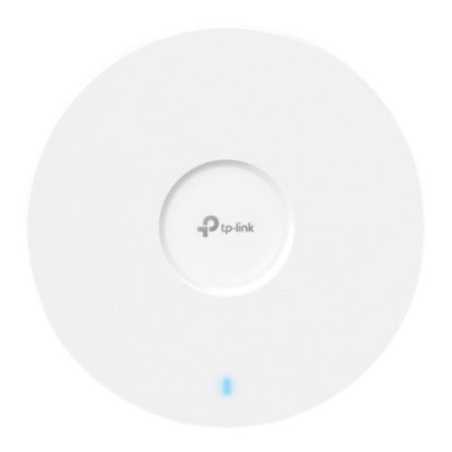

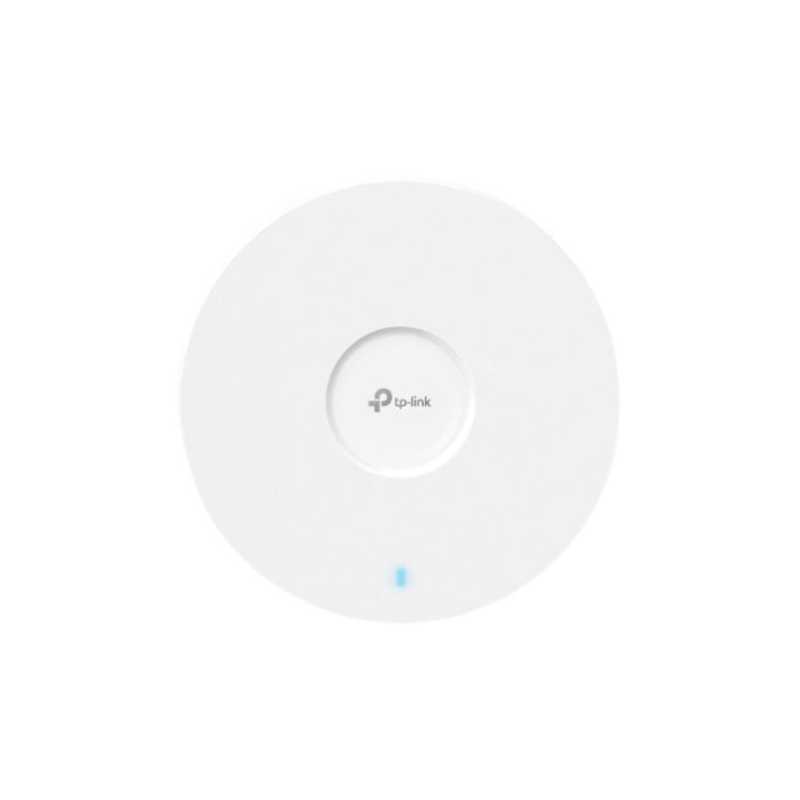

TP-Link Omada EAP723 BE3600 Ceiling Mount Wi-Fi 7 Access Point
£90.66
VAT included
Delivered within 1-2 days.
BE9300 Ceiling Mount Tri-Band Wi-Fi 7 Access Point
Features
BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1 x 2.5G port unlocks the full potential of Wi-Fi 7.
160 MHz bandwidth enables many more simultaneous transmissions.
Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Specifications
HARDWARE FEATURES
Interface
1 x 2.5G Ethernet Port
Button
Reset
Power Supply
802.3at PoE or 12V/2.5A DC
Max. Power Consumption
18.6 W (For PoE);
16.0W (For DC)
Dimensions ( W x D x H )
6.3 x 6.3 x 1.4 in (160 x 160 x 36.7 mm)
Antenna
2.4 GHz: 2 x 4.0 dBi
5 GHz: 2 x 5.0 dBi
Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage
140m squared(1500 ft²)
Concurrent Clients
350+**
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
2.4 GHz and 5 GHz
Signal Rate
688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions
4K-QAM
MU-MIMO
EHT160
Mesh
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:16(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
Management Features
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
Web-based Management
Yes
OTHERS
CertificationCE, FCC, RoHS, IC
Package Content
EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment
Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
Features
BE9300 Tri-Band Wi-Fi 7: 5760 Mbps (6 GHz) + 2880 Mbps (5 GHz) + 574 Mbps (2.4 GHz). Buffering will no longer be a problem.
1 x 2.5G port unlocks the full potential of Wi-Fi 7.
160 MHz bandwidth enables many more simultaneous transmissions.
Multi-RUs ensure the high performance of your network.
Advanced Functions: Centralized management, Mesh, and Seamless Roaming.
Specifications
HARDWARE FEATURES
Interface
1 x 2.5G Ethernet Port
Button
Reset
Power Supply
802.3at PoE or 12V/2.5A DC
Max. Power Consumption
18.6 W (For PoE);
16.0W (For DC)
Dimensions ( W x D x H )
6.3 x 6.3 x 1.4 in (160 x 160 x 36.7 mm)
Antenna
2.4 GHz: 2 x 4.0 dBi
5 GHz: 2 x 5.0 dBi
Mounting
Ceiling / Wall Mounting (Kits Included)
WIRELESS FEATURES
Coverage
140m squared(1500 ft²)
Concurrent Clients
350+**
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax/be
Frequency
2.4 GHz and 5 GHz
Signal Rate
688 Mbps (2.4 GHz) + 2882 Mbps (5 GHz)
Wireless Functions
4K-QAM
MU-MIMO
EHT160
Mesh
OFDMA
Load Balance
Band Steering
Beamforming
Airtime Fairness
Multiple SSIDS:16(8 on each band)
Wireless Schedule
Reboot Schedule
QoS(WMM)
Rate Limit
Static IP/Dynamic IP
RADIUS Accounting
MAC Authentication
Wireless Security
Captive Portal Authentication
Access Control
Maximum number of MAC Filter: 4,000
Wireless Isolation Between Clients
VLAN
Rogue AP Detection
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
< 20 dBm (2.4 GHz, EIRP)
< 23 dBm (5 GHz, band 1&band 2, EIRP)
< 28 dBm (5 GHz, band 3, EIRP)
Management Features
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller
Omada Software Controller
Cloud Access
Yes. Require the use of an OC300, OC200, Omada Software Controller, or an Omada Cloud-Based Controller.
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Yes
Web-based Management
Yes
OTHERS
CertificationCE, FCC, RoHS, IC
Package Content
EAP773
Installation Guide
Ceiling/Wall Mounting Kits
Note: Power Adapter is NOT included.
Environment
Operating Temperature: 0 °C–40 °C (32 °F–104 °F)
Storage Temperature: -40 °C–70 °C (-40 °F–158 °F)
Operating Humidity: 10%–90% non-condensing
Storage Humidity: 5%–90% non-condensing
EAP723
12 Items
Data sheet
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Additional Features
- Coverage: 1500 ft sq.Wireless Client Capacity: 250+160 MHz bandwidthMulti-RUs
- Dimensions
- 160 x 160 x 36.7 mm
- Type
- Access Point
- Speed
- 3600Mbps
- Power Supply
- 802.3at PoE or 12V/1.5A DCNOTE: Power Adapter is NOT included.
- Interface(s)
- 1 x 2.5G Ethernet Port
- Package Contents
- AP723Installation GuideCeiling/Wall Mounting KitNote: Power Adapter is NOT included.
- Power Consumption
- 18.6 W (For PoE)16.0 W (For DC)
- Wireless Functions
- 4K-QAMSeamless RoamingMU-MIMOEHT160MeshOFDMALoad BalanceBand SteeringBeamformingAirtime FairnessMultiple SSIDS:16(8 on each band)Wireless ScheduleReboot ScheduleQoS(WMM)Rate LimitStatic IP/Dynamic IPRADIUS AccountingMAC Authentication
- Wireless Standards
- IEEE 802.11 a/b/g/n/ac/ax/be
- Button(s)
- Reset
- Max Wired Transfer Rate
- 2.5 Gbps
- Bands
- Dual Band
- Management
- Omada AppCentralized Management (Cloud-Based, Hardware, Software Controller)Cloud Access - Requires controller Email AlertsLED ON/OFF ControlManagement MAC Access ControlSNMP: v1, v2c, v3System Logging Local/Remote Syslog Web-based Management
- Frequency
- 2.4GHz: Up to 688 Mbps5GHz: Up to 2882 Mbps
- Environment
- Operating Temperature: 0–40 °C (32–104 °F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Security
- Captive Portal AuthenticationAccess ControlMaximum number of MAC Filter: 4,000Wireless Isolation Between ClientsVLANRogue AP DetectionWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Weatherproof
- No
- Antenna(s)
- 2.4 GHz: 2x 4.0 dBi5 GHz: 2x 5.0 dBi
- Wireless Standard
- 802.11be (Wi-Fi 7)
- POE
- Yes
- Primary Function
- Access Point
- Access Point Mode
- Yes (Access Point Mode)
- Max Single Band Wi-Fi Rate
- 2882 Mbps
- Wi-Fi Rating
- BE3600
