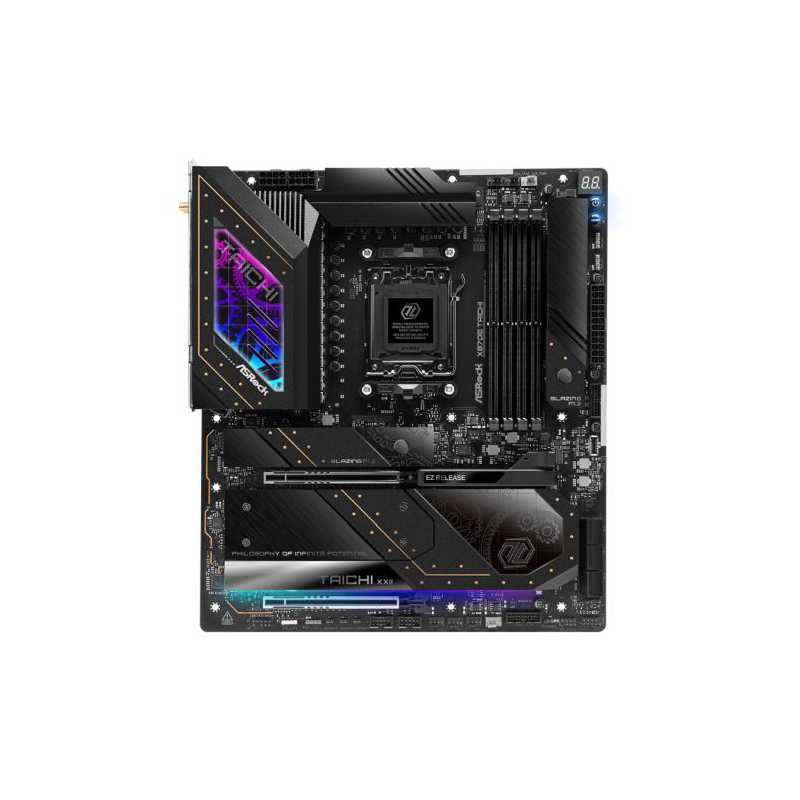

Asrock X870E TAICHI, AMD X870E, AM5, EATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, RGB, 4x M.2
search
  • Asrock X870E TAICHI, AMD X870E, AM5, EATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, RGB, 4x M.2

Asrock X870E TAICHI, AMD X870E, AM5, EATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, RGB, 4x M.2

£458.64
VAT included
Stock status: Moderate
64 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



Taichi series flagship motherboard features top-tier hardware spec, robust power design, USB4 Type-C, and DIY-friendly functionality. It's built for high-end gamers, offering luxury aesthetics and powerful performance.

  • Supports AMD Ryzen™ 9000, 8000 and 7000 Series Processors
  • 24+2+1 Phase Power Design, 110A SPS for VCore + SOC
  • 4 x DDR5 DIMMs Supports Dual Channel, up to 8200+ (OC)
  • 2 PCIe 5.0 x16
  • Graphics Output Options: 2 USB4 Type-C, 1 HDMI
  • Realtek ALC4082 5.1 CH HD Audio Codec, ESS SABRE9219 DAC, WIMA Audio Caps
  • 1 Blazing M.2 (PCIe Gen5x4)
  • 3 Hyper M.2 (PCIe Gen4x4)
  • 6 SATA3
  • 2 USB4 Type-C (Rear)
  • 1 USB 3.2 Gen2x2 Type-C (Front)
  • 5 USB 3.2 Gen2 Type-A (Rear)
  • 7 USB 3.2 Gen1 (3 Rear, 4 Front)
  • Realtek 5G LAN
  • 802.11be Wi-Fi 7 + Bluetooth
  • Supports Graphics card EZ Release
  • Toolless Multi-Layer M.2 Heatsink
  • M.2 Bottom Heatsink





Optimized VRM Design
  • Exclusive 20K Cap with 1000uF Capacitance - The upgraded 20K Black capacitor not only extends the lifespan to 20,000 hours but also increases the capacitance value from 560uF to 1000uF.
  • 24+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.
  • SPS (Smart Power Stage) - Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.
  • Hi-Density Power Connector - CPU overclocking requires higher current, ASRock Hi-Density Power connectors is able to withstand current higher traditional CPU 8-pin and ATX 24-pin connector, giving a more stable system as well as lowering the risk of fire under heavy overclocking.






Premium PCB Solution
  • Server Grade Low Loss PCB - The server grade low loss PCB improves signal integrity, allowing motherboard to support PCIe 5.0 for both graphics card and M.2 SSD, it also improves memory OC potential to deliver the most extreme memory performance.
  • 2oz Copper PCB - 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.
  • 8 Layer PCB - The 8 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency, ensures a reliable and long-lasting system while delivering ultimate performance without any compromise.






DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.






PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128GB/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.






DIY Friendly Design
  • Graphics Card EZ Release - ASRock redesigned the PCIe slot installation method to cater to user needs, allowing for hassle-free installation and removal of the graphics card effortlessly.
  • M.2 Heatsink Toolless Design - Besides the M.2 SSD toolless design on the motherboard, ASRock up a notch by introducing this industry first M.2 heatsink quick release mechanism on the motherboard. The user friendly toolless design helps installing M.2 SSD super easy & simple.
  • M.2 Bottom Heatsink - The M.2 bottom heatsink is able to dissipate heat of the M.2 SSD efficiently through the motherboard PCB, maximize performance while maintaining system stability.





Enlarged M.2 Heatsink
  • XXL M.2 Heatsink - The extra-large aluminium alloy M.2 heatsink effectively improves heat dissipation to keep those high speed M.2 SSDs as cool as possible, it is able to give better stability while maintaining top performance.
  • Anti-Drop Screw - The enhanced M.2 heatsink with anti-drop screw design that make sure installation process more easily.





Intelligent Cooling Design
  • Aluminium Heatsink - The first thing that catches the eye is the optimized Aluminium Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.
  • PWM/DC Fan Support - ASRock fan headers automatically detect whether fans are running in DC or PWM mode, allowing users to fine-tune the fan curve and achieve quieter operation.
  • Thermistor Header - The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions based on workload. Thermal management settings can be easily configured via Fan-Tastic Tuning or UEFI.
  • Fan-Tastic Tuning - ASRock A-Tuning Fan-Tastic Tuning function enables users to auto-detect the minimum duty of each fan with a single click. Users can also easily adjust the fan curve via the visualized UI interface, meeting their system's cooling performance and noise reduction requirements.





Composite VRM Heatsink

It is equipped with a composite VRM heatsink combining a cooling fan, bigger aluminum sink and heat pipe for maximum heat dissipation.






Wi-Fi 7
  • Enhanced VR Experience - Wi-Fi 7 offers higher data throughput, lower latency, and Multi-link Operation. These features ensure a smooth and real-time interactive experience, making the VR/AR experience more immersive and connected.
  • Wi-Fi 7 802.11be - Latest WiFi 7 technology delivers extreme wireless internet speeds and low latency, with higher throughput and Multi-RU as well as puncturing technology. The new WiFi 7(802.11be) technology is able to accelerate cloud-based gaming, 8K video streaming, and video conferencing.
  • Multi-link Operation(MLO) - Multi-link Operation (MLO) enables the simultaneous use of multiple bands and channels, boosting speed and throughput while reducing latency for a smoother, faster internet experience.
  • New Wi-Fi Antenna Design - The new Wi-Fi antenna design is ideal for high-bandwidth, low-latency applications and ensures a stable connection.





Enhanced USB4 Type-C

USB4 technology brings speed and versatility to the most advanced USB Type-C, offering a fast and simple level of connection for work or home. It enables lightning-fast 40Gbps data transfer bitrate.






Optimized 5 Gb/s LAN

ASRock's 5Gb/s LAN Connector features an exclusive, patent-pending design, boasting superior electromagnetic interference resistance, ensuring high-speed stable performance and providing users with a better networking experience.






Front Panel USB 3.2 Gen2x2 Type-C Header

The latest USB 3.2 Gen2x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.






More than USB Transfer Speed
  • Lightning Gaming Ports - Aimed for die hard gamers and enthusiasts! Lightning Gaming Ports are sourced from two different controller interfaces that assist gamers in connecting the high speed mice/keyboard with the lower jitter and latency!
  • Ultra USB Power - Provides stable power and better sound experience! Ultra USB Power provides 5V power transformed from +12V power rail, whose voltage drop will be much lower than the +5V from the PSU under heavy loading, and prevents noise from other devices or RGB LED.





High Definition Sound Effects
  • ESS SABRE9219 DAC - Embrace the audio stunning performance with ES9219 SABRE DAC!
  • WIMA Audio Cap - Optimized for high end audio applications! Deliver crystal and balanced sound to satisfy even the pickiest audiophile.
  • Nahimic Audio - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices! - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.





Polychrome RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.






Deluxe Accessories
  • ARGB Splitter Cable - The ARGB Splitter Cable enables easy management of multiple ARGB devices through a single controller. With its splitting capability, it streamlines your lighting setup for a unified and dynamic aesthetic.
  • Customized Thermal Management - The thermistor cable and thermistor header provide an additional source for temperature monitoring, offering customized thermal management solutions.





Reinforced Steel Slot [PCIe 5.0 Version]

The reinforced steel slot is capable of supporting PCI Express 5.0 standard. The various benefits include:
  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.





EZ Setting
  • Auto Driver Installer - No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
  • Flexible Integrated I/O Shield - Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.




ASROCK
X870E TAICHI
64 Items

Data sheet

.
2 x USB 2.02 x USB 3.2 Gen11 x Front Panel Type-C USB 3.2 Gen2x2 1 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED
RAM Speeds
Up to 8200+(OC)
Accessories
4 x SATA Data Cables1 x ASRock WiFi 2.4/5/6 GHz Antenna1 x ARGB Splitter Cable3 x Thermistor Cables
USB Ports Supported
Rear:2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)5 x USB 10Gbps Type-A (USB32_12 are Lightning Gaming Ports)3 x USB 5Gbps Type-A (USB32_34 supports Ultra USB Power)2 x USB 2.0Front:1 x USB 20Gbps Type-C4 x USB 5Gbps Type-A4 x USB 2.0
RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devicesSupports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
Warranty
3 Year Replacement Warranty
Motherboard Type
Desktop
Form Factor
Extended ATX
Socket
AMD AM5
Chipset
AMD X870E
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)ECC and Non-ECC, Un-buffered MemorySupports XMP and EXPO memory modules
RAM Slots
4 x DIMM
Maximum Memory
256GB
Multi-GPU Support
Supports AMD CrossFire
LAN
5GB LAN
Audio
5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
Back Panel I/O Ports
2 x Antenna1 x HDMI1 x Optical SPDIF Out2 x USB4 Type-C (40 Gb/s)5 x USB 3.2 Gen2 Type-A3 x USB 3.2 Gen1 Type-A2 x USB 2.01 x RJ-45 LAN1 x Clear CMOS Button1 x BIOS Flashback Button1 x Line Out Jack1 x Microphone Input Jack
Internal I/O Connectors
3 x Thermistor Cable1 x Power LED and Speaker1 x RGB LED3 x Addressable LED2 x CPU Fan4 x Chassis Fan1 x AIO Pump Fan1 x Water Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Panel Audio
CPU Support
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
Package Type
Retail
Graphics Ports
1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
Additional Features
See Overview
Graphics
Integrated GraphicsGraphics specifications may vary between CPU types
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
1 x LAN
Max LAN Speed
5GB LAN
RGB Lighting
Out of the box RGB lighting
Wi-Fi
Yes (Wi-Fi)
