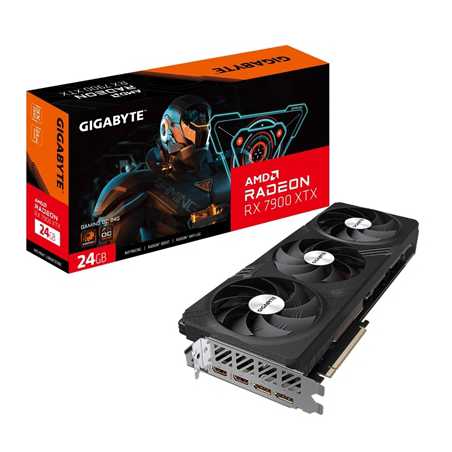

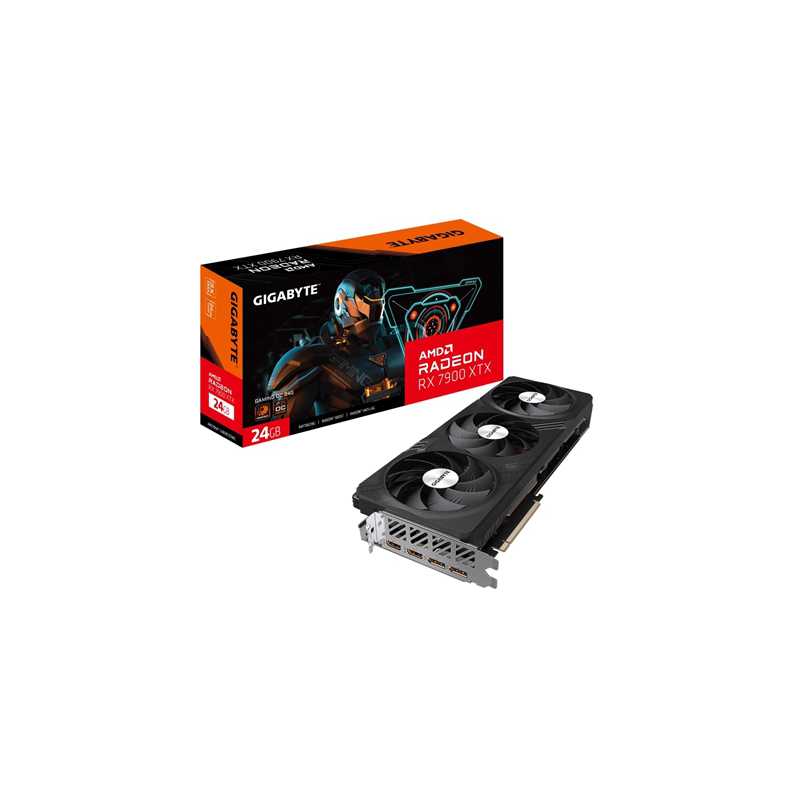

Gigabyte AMD Radeon RX 7900 XTX GAMING OC 24G Graphics Card, 24GB GDDR6, 6144 Streams, 2525 MHz Boost Clock, Triple Fan, RGB, 2x

Radeon RX 7900 XTX GAMING OC 24G

KEY FEATURE
Powered by Radeon RX 7900 XTX
Integrated with 24GB GDDR6 384-bit memory interface
WINDFORCE Cooling System
RGB Fusion
Dual BIOS
Protection metal back plate
Anti-sag bracket

CORE CLOCK
Boost Clock: up to 2525 MHz (Reference card: 2500 MHz)
Game Clock: up to 2330 MHz (Reference card: 2300 MHz)

WINDFORCE COOLING SYSTEM
The WINDFORCE cooling system features three 100mm unique blade fans, alternate spinning, 9 composite copper heat pipes, a large vapor chamber directly touches the GPU, 3D active fans and Screen cooling, which together provide high efficiency heat dissipation.

ALTERNATE SPINNING
Reduce the turbulence of adjacent fans and increase airflow pressure.

3D ACTIVE FAN
The 3D Active Fan provides semi-passive cooling, and the fans will remain off when the GPU is in a low load or low power game.

UNIQUE BLADE FAN
The airflow is spilt by the triangular fan edge, and guided smoothly through the 3D stripe curve on the fan surface.

GRAPHENE NANO LUBRICANT
Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

LARGE VAPOR CHAMBER & HEAT-PIPE
The large vapor chamber directly contacts the GPU, coupled with the composite heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING
Extended heatsink allows air to pass through, providing better heat dissipation.

ULTRA DURABLE
Ultra Durable certified highest-grade metal chokes, lower ESR solid capacitors, 2oz copper PCB, and lower RDS(on) MOSFETs, plus over-temperature design to deliver superior performance and longer system life.

FRIENDLY PCB DESIGN
Fully automated production process ensures top quality of the circuit boards and eliminates sharp protrusions of the solder connectors seen on the conventional PCB surface. This friendly design prevents your hands from getting cut or inadvertently damaging components when making your build.

Specification

Graphics Processing
Radeon RX 7900 XTX

Core Clock
Boost Clock: up to 2525 MHz (Reference card: 2500 MHz)
Game Clock: up to 2330 MHz (Reference card: 2300 MHz)

Stream Processors
6144

Memory Clock
20 Gbps

Memory Size
24 GB

Memory Type
GDDR6

Memory Bus
384 bit

Card Bus
PCI-E 4.0

Digital Max Resolution
7680x4320

Multi-view
4

Card size
L=331 W=138 H=50 mm

PCB Form
ATX

DirectX
12 Ultimate

OpenGL
4.6

Recommended PSU
850W

Power Connectors
8 Pin x 2

Output
DisplayPort 2.1 x 2
HDMI 2.1 x 2

Accessories
Quick guide
Anti-sag bracket
Anti-sag bracket installation guide
