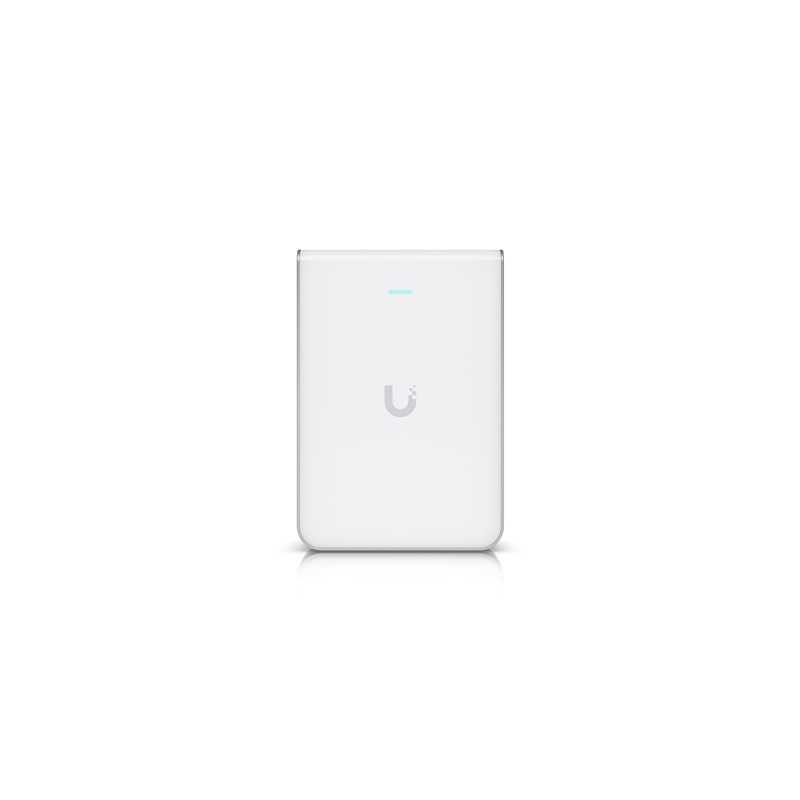

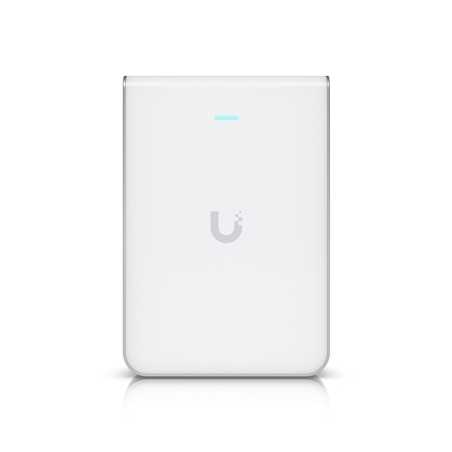

Ubiquiti U7-PRO-WALL U7 Pro Wall Wall Mounted WiFi 7 Access Point with 2.5GbE Uplink

Ubiquiti UniFi U7 Pro Wall WiFi 7 Access Point

Key Features
WiFi 7 with 6 GHz support
802.11a/b/g/n/ac/ax/be
6 spatial streams
140 m² (1,500 ft²) coverage
300+ connected devices
Powered using PoE+
2.5 GbE uplink
Versatile deployment

Introducing the Ubiquiti UniFi U7-Pro-Wall, a high-performance wall-mounted WiFi 7 access point designed to deliver exceptional wireless coverage and speed.

This sleek, compact device is perfect for high-density environments, offering tri-band connectivity with support for 2.4 GHz, 5 GHz, and the new 6 GHz band. With a maximum aggregate throughput of 10.2 Gbps, the U7-Pro-Wall ensures seamless connectivity for all your devices.

UniFi U7-Pro-Wall features advanced technologies such as OFDMA and MU-MIMO, enhancing network efficiency and performance. U7-Pro-Wall includes advanced security protocols to protect your network and is deal for both enterprise and residential deployments, the U7-Pro-Wall combines aesthetic design with powerful performance.

Specifications

Technical Specifications

Mechanical

Dimensions
150 x 103 x 36 mm (5.9 x 4.1 x 1.4")

Weight
580 g (1.3 lb)

Enclosure Material
Polycarbonate, aluminum

Mount Material
Aluminum

Hardware

Networking Interface
(1) 1/2.5 GbE RJ45 port

Management Interface
Ethernet

Power Method
PoE+

Power Supply
UniFi PoE switch

Supported Voltage Range
44—57V DC

Max. Power Consumption
22W

Max. TX Power
2.4 GHz - 22 dBm
5 GHz - 26 dBm
6 GHz - 23 dBm

MIMO
2.4 GHz - 2 x 2
5 GHz - 2 x 2
6 GHz - 2 x 2

Throughput Rate
2.4 GHz - 688 Mbps
5 GHz - 4324 Mbps
6 GHz - 5764 Mbps

Antenna Gain
2.4 GHz - 4 dBi
5 GHz - 5dBi
6 GHz - 6 dBi

LEDs
White/Blue

Button
Factory reset

Mounting
Wall (Included)
Table stand, flush mount (Optional)

Ambient Operating Temperature
-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity
5 to 95% noncondensing

Certifications
CE, FCC, IC

Software

WiFi Standards
802.11a/b/g/n/ac/ax/be

Wireless Security
WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID
8 per radio

VLAN
802.1Q

Advanced QoS
Per-user rate limiting

Guest Traffic Isolation
Supported

Concurrent Clients
300+

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b
1, 2, 5.5, 11 Mbps

802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network
Version 8.1 and later

UniFi OS
Version 3.2 and later

Box Contents
1 x U7-Pro-Wall access point
1 x Mounting plate template level
1 x Wall mount plate
All mounting hardware
