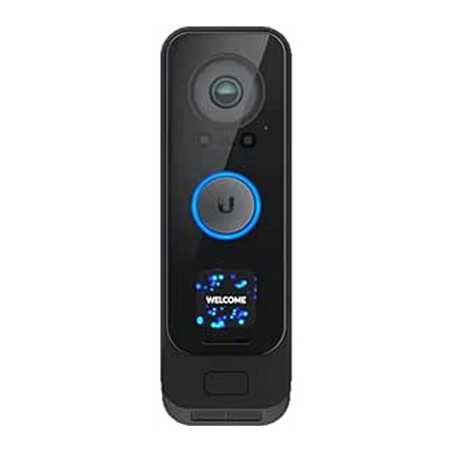

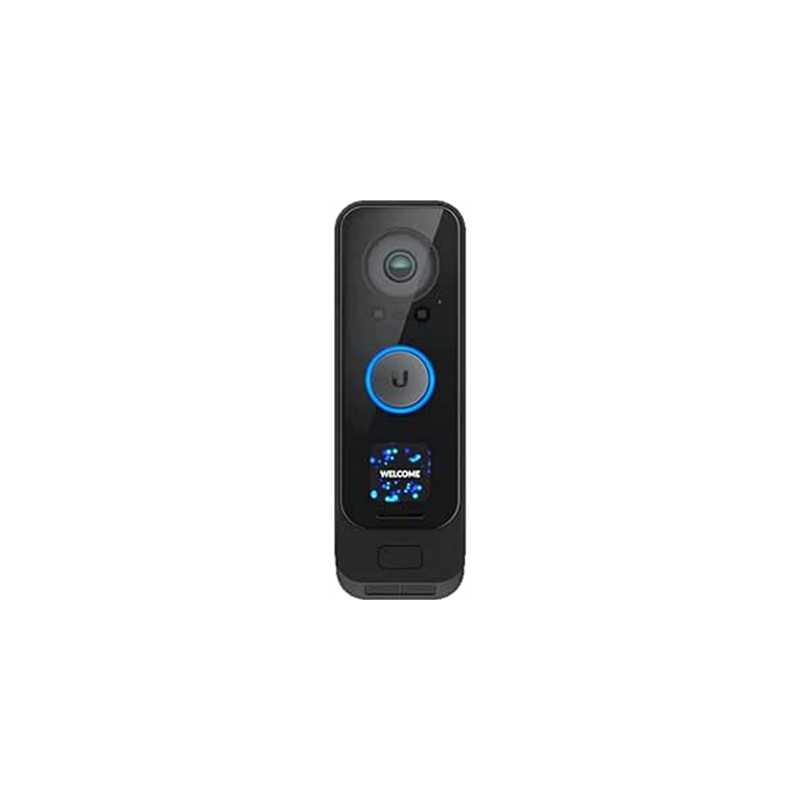

Ubiquiti UVC-G4-Doorbell Pro UniFi Protect WiFi 5 Video Doorbell Intercom w/ 5MP Camera, 2m Night Vision & Two-Way Audio

The Ubiquiti UVC-G4-Doorbell Pro UniFi Protect WiFi 5 Video Doorbell Intercom is a WiFi-enabled video doorbell equipped with a primary 5MP camera and a secondary 8MP package camera. The doorbell's main camera is equipped with IR LED to provide enhanced night vision that, when combined with the built-in porch light, ensures a reliably clear surveillance feed around the clock. The G4 Doorbell Pro also features echo-cancelling, two-way audio so you can interact with visitors, and a programmable display which allows you to give alerts or delivery instructions to couriers. Designed to be a powerful, plug-and-play security tool, the G4 Doorbell Pro can be set up and configured in minutes with the UniFi Protect application.

Specifications

Mechanical

Dimensions
160.6 x 51.7 x 28.7 mm (6.32 x 2.03 x 1.13 in.)

Weight
Without mount: 253 g (8.92 oz.)
With flat wall mount: 286 g (10.08 oz.)
With 20° wedge mount: 325 g (11.46 oz.)

Enclosure materials
Polycarbonate, aluminium alloy

Mounting materials
Flat wall mount: aluminium alloy
20° wedge mount: polycarbonate

Weatherproofing
IPX4

Optics

Sensor
5 MP CMOS sensor

Lens
Fixed focal length

View angle
H: 138°; V: 114°; D: 155°

Night mode
IR LED illumination and an IR cut filter

Video

Video compression
H.264

Resolution
1600 x 1200 (4:3)

Maximum frame rate
30 FPS

System

Processor specs
Quad core Arm Cortex-A53 based chip

Memory information
512 MB

Management interface
UniFi Protect application

Networking interface
802.11a/b/g/n/ac WiFi
Bluetooth 5.0
GbE support (with UACC-Adapter-DBPOE - sold separately)

Flash memory support
256 MB

Max. power consumption
10VA

Power requirements
16 to 24VAC, 1.25A max., 50/60 Hz
USB-C power cable, 5VDC, 2A
Power supplies sold separately, see accessories tab

Supported voltage range
37 to 57VDC

Link/activity LED
Yes

Button
Factory reset

Mounting
Flat wall, 20° wedge (kits included)

Operating temperature
-10°C to 40°C (14°F to 104°F)

Operating humidity
10% to 90% noncondensing

Certifications
FCC, IC, CE

Audio

Microphone
Yes (can be disabled)

Speaker
Yes

Software

UniFi OS application
UniFi Protect

Mobile app
UniFi Protect (iOS and Android)
