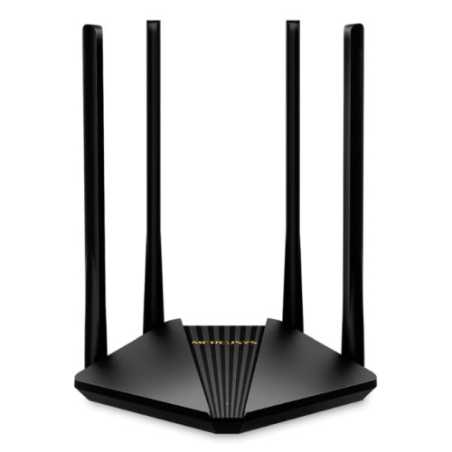

Mercusys MR30G AC1200 Wireless Dual Band Gigabit Router
£32.31
VAT included
Delivered within 1-2 days.
AC1200 Gigabit WiFi – Enjoy home entertainment without any lag, reaching speeds up to 1.2 Gbps (867 Mbps on the 5 GHz band and 300 Mbps on the 2.4 GHz band)
Broader Coverage – 4x high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device
Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites
Specifications
Wireless
Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz, 5 GHz
Signal Rate
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -71dBm
11n HT20 MCS7: -74dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK
Software
Operation Modes
Router Mode, Access Point Mode
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security
SPI Firewall, IP and MAC Address Binding
Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
Hardware
Dimensions (W x D x H)
6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)
Interfaces
1× Gigabit WAN Port + 2× Gigabit LAN Ports
Button
WPS/Reset Button
Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas
Others
Package Contents
• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
Broader Coverage – 4x high-gain antennas with Beamforming boost stable connections throughout your home for strong WiFi signals in every corner
Full Gigabit Ports – Make full use of your internet access and transfer data at dizzying speeds for peak performance
Higher Network Efficiency – MU-MIMO technology allows MR30G to communicate with multiple devices at the same time, increasing WiFi throughput for each device
Easily Manage Your Home Network – Varied software functions such as Parental Controls, QoS, and Guest Network for safety and effectiveness
IPTV Supported – Supports IGMP Proxy/Snooping, Bridge, and Tag VLAN to optimize IPTV streaming
IPv6 Supported – Allows you to both enjoy the IPv6 services provided by your ISP and visit IPv6 websites
Specifications
Wireless
Wireless Standards
IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
Frequency
2.4 GHz, 5 GHz
Signal Rate
867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible with 11ac/a/b/g/n Wi-Fi standards
Reception Sensitivity
11g 6Mbps: -96dBm
11g 54Mbps: -78dBm
11n HT40 MCS7: -71dBm
11n HT20 MCS7: -74dBm
11a 6Mbps: -97dBm
11a 54Mbps: -79dBm
11ac VHT20 MCS8: -74dBm
11ac VHT40 MCS9: -70dBm
11ac VHT80 MCS9: -65dBm
Transmission Power
2.4 GHz < 20dBm (EIRP)
5 GHz < 23dBm (EIRP)
Wireless Security
WPA-PSK / WPA2-PSK
Software
Operation Modes
Router Mode, Access Point Mode
WAN Type
Dynamic IP/Static IP/PPPoE/L2TP/PPTP
Management
Access Control
Local Management
Remote Management
DHCP
Server, DHCP Client List
NAT Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall Security
SPI Firewall, IP and MAC Address Binding
Guest Network
2.4 GHz Guest Network, 5 GHz Guest Network
Hardware
Dimensions (W x D x H)
6.3 × 5.0 × 1.5 in (159.7 × 125.9 × 37.1 mm)
Interfaces
1× Gigabit WAN Port + 2× Gigabit LAN Ports
Button
WPS/Reset Button
Antenna Type
4× 5 dBi Fixed Omni-Directional Antennas
Others
Package Contents
• AC1200 Wireless Dual Band Gigabit Router (MR30G)
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable
MR30G
20 Items
Data sheet
- Warranty
- 3 Years
- Package Type
- Retail
- Package Weight
- To be confirmed
- Dimensions
- 159.7 x 125.9 x 37.1 mm
- Type
- Router
- Speed
- 1200 Mbps
- Interface(s)
- 1 x Gigabit WAN2 x Gigabit LAN
- Package Contents
- AC1200 Wireless Dual Band Gigabit Router (MR30G)Power AdapterQuick Installation GuideRJ45 Ethernet Cable
- Wireless Functions
- Router Mode, Access Point ModeMU-MIMOIPTV SupportedIPv6 SupportedEasyMesh Compatible Quality of Service
- Button(s)
- WPS/Reset Button
- Connectivity
- Wireless
- Max Wireless Transfer Rate
- 867 Mbps
- Max Wired Transfer Rate
- 10/100/1000 Mbps
- Signal Rate
- 5GHz: Up to 867Mbps2.4GHz: Up to 300Mbps
- Bands
- Dual Band
- Management
- Access ControlLocal ManagementRemote Management
- Frequency
- 2.4GHz and 5GHz
- Environment
- Operating Temperature: 0°C~40°C (32°F ~104°F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Security
- WPA-PSK / WPA2-PSK Wireless SecuritySPI Firewall, IP and MAC Address BindingParental ControlsGuest Network
- Advanced Features
- See Overview
- DHCP
- Server, DHCP Client List
- Antenna(s)
- 4 x 5dBi Fixed Omni-Directional Antennas
- Wireless Standard
- 802.11ac (Wi-Fi 5)
- POE
- No
- USB Application
- -
- Standards
- IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz
- Port/NAT Forwarding
- Port Forwarding, Port Triggering, UPnP, DMZ
- Mesh Wi-Fi Support
- Yes (Mesh Wi-Fi)
