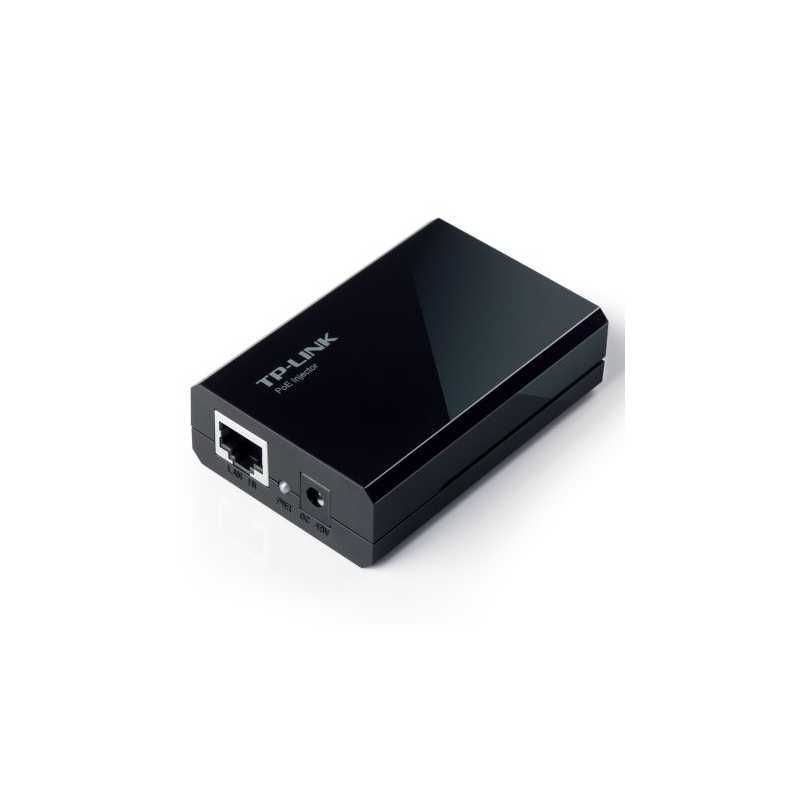

TP-Link TL-POE150S IEEE 802.3af PoE Injector

The PoE Injector TL-POE150S fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, such as TP-LINK’s TL-POE10R, or other equivalent product, to expand your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

Key Features:

IEEE 802.3af compliant
Delivers power up to 100 meters
Auto-determine the necessary power requirements
Plug-and-Play, requires no configuration
External power adapter supply

Specifications

Standards and Protocols
IEEE 802.3, 802.3u, 802.3af
CSMA/CD, TCP/IP

Basic Function
Compatible with IEEE 802.3af compliant PDs
Delivers power up to 100 meters
Auto-determine the necessary power requirements

Plug-and-Play Ports
LAN Port
1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)

PoE Port
1 10/100M Auto-Negotiation RJ45 port (Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100 STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 cable (Max 100m)

LED Indicator
PWR

Safety & Emission
FCC, CE, RoHS

Dimensions (W x D x H)
3.2 x 2.1 x 0.9 in.(80.8 x 54 x 24 mm)

Environment
Operating Temperature: 0 degrees - 40 degrees
Storage Temperature: -40 degrees - 70 degrees
Operating Humidity: 10% - 90% non-condensing
Storage Humidity: 5% - 90% non-condensing

Power Output
15.4W (Max. 48VDC)

Package Contents
TL-POE150S PoE Supplier Adapter
One Ethernet (CAT.5 UTP) Cable
One Power Adapter
One Power Cable
User Guide
