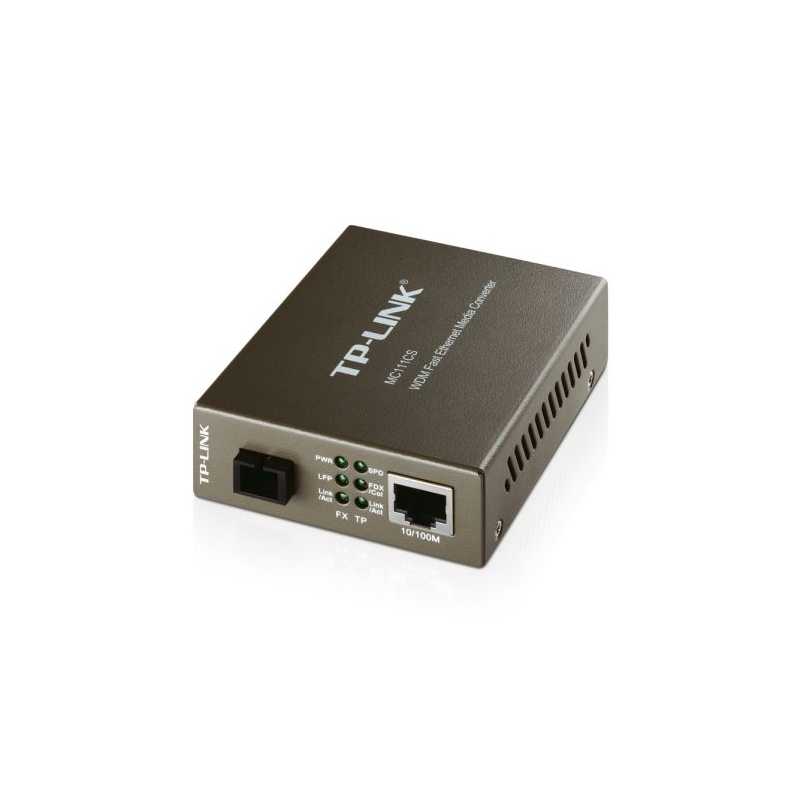

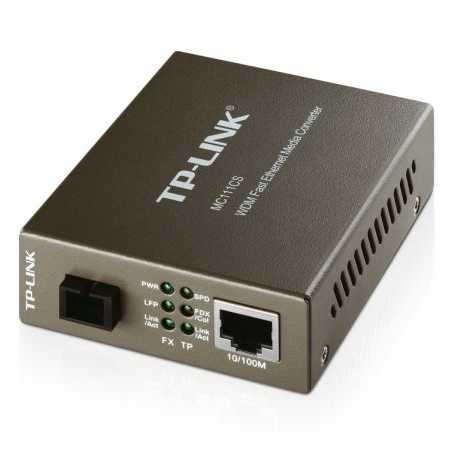

TP-LINK (MC111CS) Single-Mode SC Fiber WDM Media Converter, up to 20km, TX:1550nm, RX:1310nm
search
  • TP-LINK (MC111CS) Single-Mode SC Fiber WDM Media Converter, up to 20km, TX:1550nm, RX:1310nm

TP-LINK (MC111CS) Single-Mode SC Fiber WDM Media Converter, up to 20km, TX:1550nm, RX:1310nm

£27.14
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock

Highlights:

• Complies with 802.3u 10/100Base-TX, 100Base-FX standards
• Link Fault Passthrough and Far End Fault minimize the loss caused by link failure timely
• Adopts WDM technology, transmitting and receiving data on one single fiber


What This Product Does
The MC111CS is a media converter designed to convert 100BASE-FX fiber to 100Base-TX copper media or vice versa. Adopting WDM technology, MC111CS takes only one fiber cable to transmit and receive data, which will save half cabling cost for you. Designed under IEEE 802.3u 10/100Base-TX and 100Base-FX standards, the MC111CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC111CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1550nm on transferring data and at 1310nm on receiving data. So the other end device to cooperate with the MC111CS should work at 1310nm on transferring data and at 1550nm on receiving data. Another TP-LINK´s media converter MC112CS is just one of the examples to cooperate with MC111CS.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´´ system chassis, Auto MDI/MDI-X for TX port, Auto negotiation of duplex mode on TX port, and front panel status LEDs. The MC111CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 20 kilometers.
MC111CS

Data sheet

Warranty
2 Years
Package Type
Retail
Package Weight
0.4800 kg
Type
Multi-Mode Media Converter
Power Supply
External Power Adapter
Ports
1 100M SC port1 100M RJ45 port (Auto MDI/MDIX)
Enclosure Type
External
Basic Functions
Adopts WDM technologyHalf/Full-Duplex transfer mode for FX portFull Duplex Flow Control (IEEE 802.3x)Half Duplex Flow Control (Backpressure)Link Fault Passthrough and Far End FaultExtends fiber distance up to 20km
Dimensions (WxDxH)
3.7 x 2.9 x 1.1 in. (94.5 x 73.0 x 27.0 mm)
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Environment
Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
LED Indicators
PWR, FDX/Col, Link/Act, SPD
Wave Length
1550nm Tx/1310nm Rx
WDM TX
1550nm
WDM RX
1310nm
Network Media 10BASE-T
UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100 Ohms STP (maximum 100m)
Network Media 100BASE-T
UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100 Ohms STP (maximum 100m)
Network Media 100BASE-FX
Single-mode fiber
Transmission Distance
20km
