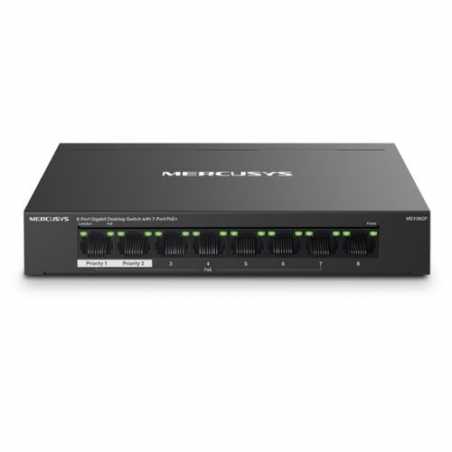

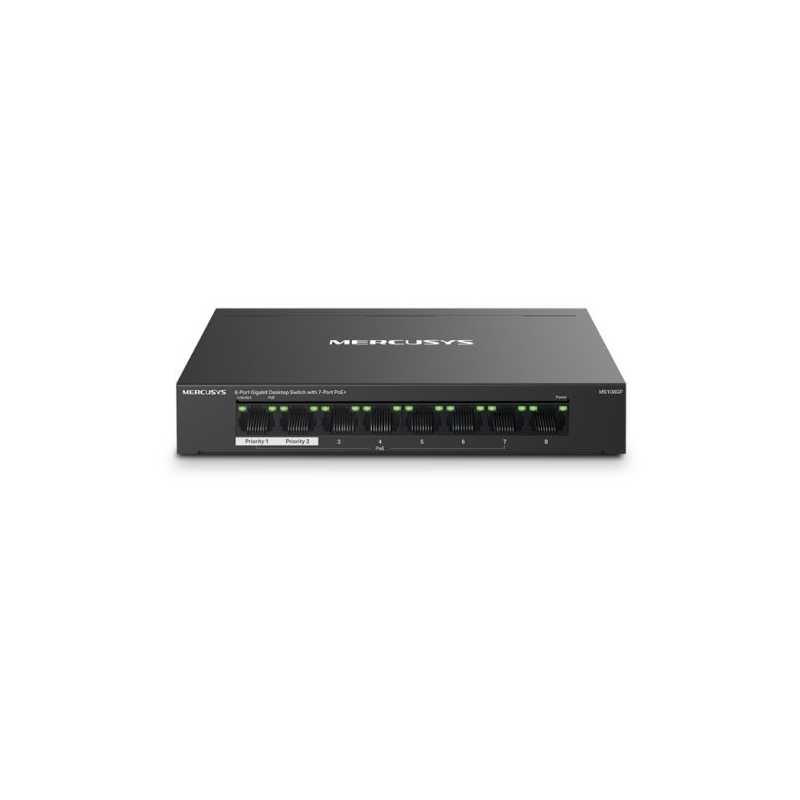

Mercusys MS108GP 8-Port Gigabit Desktop Switch with 7-Port PoE+
£37.44
VAT included
Delivered within 1-2 days.
Mercusys MS108GP Coming Soon 8-Port Gigabit Desktop Switch with 7-Port PoE
Full Gigabit Ports
8x 10/100/1000 Mbps RJ45 ports
Two Cables in One
With 7 PoE ports, transfers data and power on one single cable
High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode
Isolation Mode
One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing
Allows for efficient heat dissipation and long network life
Plug and Play
Simple to use and saves time and effort
Specifications
Hardware
Dimensions (W X D X H)
171x98x27 mm
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W
External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Standards and Protocols
IEEE 802.3x Flow Control
Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame
9 KB
Mac Address Table
8K
Max Power Consumption
5.07W(220 V / 50 Hz, no PD connected)
77.33W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation
17.238 BTH/h (no PD connected)
262.922 BTH/h(with 65W PD connected)
Others
Package Contents
8-Port Gigabit Desktop Switch with 7-Port PoE(MS108GP)
Power Adapter
Quick Installation Guide
Full Gigabit Ports
8x 10/100/1000 Mbps RJ45 ports
Two Cables in One
With 7 PoE ports, transfers data and power on one single cable
High Power PoE
Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports
Long-Range up to 250 m
Increases PoE transmission distance to 250 m by Extend Mode
Isolation Mode
One click to divide traffic for specific ports for stability and security
Compliant with Powered Devices
Works with IEEE 802.3af/at compliant PDs
Durable Metal Casing
Allows for efficient heat dissipation and long network life
Plug and Play
Simple to use and saves time and effort
Specifications
Hardware
Dimensions (W X D X H)
171x98x27 mm
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 7
PoE Power Budget: 65 W
External Power Supply
External Power Adapter (Output: 53.5V/1.31A)
Standards and Protocols
IEEE 802.3x Flow Control
Data Rates
10/100/1000 Mbps at Half Duplex
20/200/2000 Mbps at Full Duplex
Jumbo Frame
9 KB
Mac Address Table
8K
Max Power Consumption
5.07W(220 V / 50 Hz, no PD connected)
77.33W(220 V / 50 Hz, with 65W PD connected)
Max Heat Dissipation
17.238 BTH/h (no PD connected)
262.922 BTH/h(with 65W PD connected)
Others
Package Contents
8-Port Gigabit Desktop Switch with 7-Port PoE(MS108GP)
Power Adapter
Quick Installation Guide
MS108GP
26 Items
Data sheet
- Warranty
- 3 Years
- Package Type
- Retail
- Dimensions
- 171 x 98 x 27 mm
- Speed
- 10/100/1000
- Power Supply
- External Power Adapter (Output: 53.5V/1.31A)
- Interface(s)
- 8 x 10/100/1000Mbps Ports
- Package Contents
- 8-Port Gigabit Desktop Switch (MS108GP)Power AdapterQuick Installation Guide
- Ports
- 7 Ports
- Standards and Protocols
- IEEE 802.3x Flow Control
- Rackmountable
- No
- Number of Ports
- 8
- PoE Ports (RJ45)
- Compliant with 802.3 af/at Powered DevicesPoE Ports: Port 1- Port 7PoE Power Budget: 65 W
- Environment
- perating Temperature: 0°C~40°C (32°F~104°F)Storage Temperature: -40°C~70°C (-40°F~158°F)Operating Humidity: 10%~90% RH non-condensingStorage Humidity: 5%~95% RH non-condensing
- Advanced Functions
- See Overview
- Mac Address Table
- 8k
- Jumbo Frame
- 15 KB
- POE
- Yes
- RJ45 Data Transfer Rate
- 10/100/1000 Mbps
- Managed/Unmanaged
- Unmanaged
- PoE capable
- Yes
- Managed
- No
