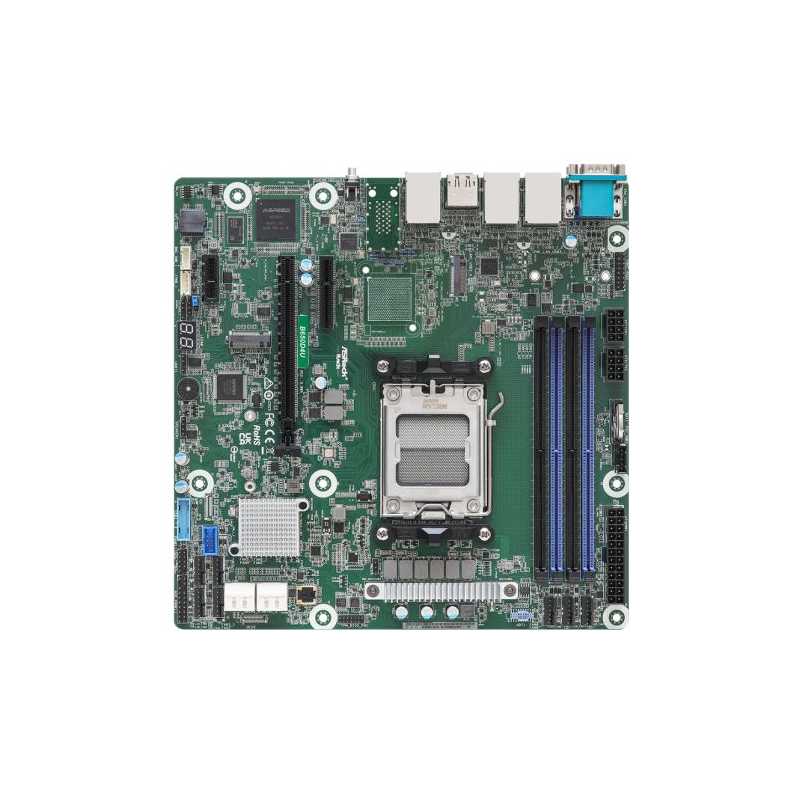

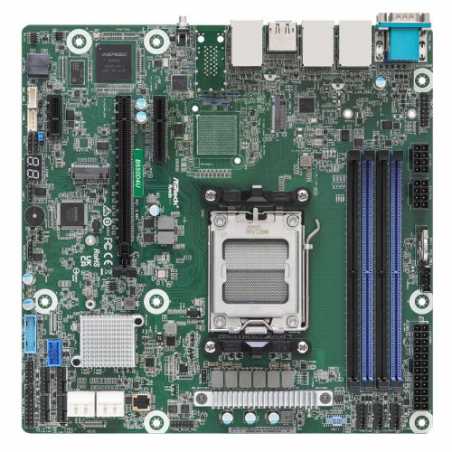

Asrock Rack B650D4U, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x GB LAN, IPMI Remote Management, PCIe5, 2x M.2
search
  • Asrock Rack B650D4U, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x GB LAN, IPMI Remote Management, PCIe5, 2x M.2

Asrock Rack B650D4U, AMD B650E, AM5, Micro ATX, 4 DDR5, HDMI, DP, 2x GB LAN, IPMI Remote Management, PCIe5, 2x M.2

£362.21
VAT included
Stock status: Out of stock
Out of stock
Quantity
Out of stock




B650D4U


  • Micro-ATX (9.6"x 9.6")
  • Support AMD Ryzen 7000 series Processors
  • 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
  • 1 PCIe5.0 x16, 1 PCIe5.0 x4, 1 PCIe4.0 x1
  • Supports 1 M.2 (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
  • 2 RJ45 (1GbE) by Intel® i210
  • 4 SATA 6Gb/s
  • 1 HDMI, 1 DisplayPort
  • Remote management (IPMI)






System BIOS

BIOS Type:
AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM

BIOS Features:
Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5






Hardware Monitor

Temperature:
CPU, DDR, MB, Card Side, Chipset, M.2 slot

Fan:
Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)

Voltage:
VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V






Environment

Temperature:
Operation temperature: 10°C ~ 35°C / Non operation temperature: -40°C ~ 70°C

Humidity:
Non operation humidity: 20% ~ 90% ( Non condensing)



ASROCK_RACK
B650D4U

Data sheet

.
1 x Clear CMOS1 x 3-pin, 80 debug port header
RAM Speeds
5200MHz (1DPC); 3600MHz (2DPC)ECC/non-ECC UDIMM
USB Ports Supported
4 x USB 3.2 Gen1 Type- A (at back)
Storage
4 x SATA III1 x M-key (PCIe5.0 x4), supports 2280/2242 form factor [CPU]1 x M-key (PCIe4.0 x4), supports 2280/2242 form factor [FCH]
RAID
Yes
Warranty
3 Years
Motherboard Type
Server / Workstation
Form Factor
Micro ATX
Socket
AMD AM5
Chipset
AMD B650E
DDR Type
DDR5
RAM Technology
DDR5 (Dual Channel)
RAM Slots
4 x DIMM
Maximum Memory
32GB
LAN
Dual GB LAN & Dedicated IPMI LAN port
Back Panel I/O Ports
1 x UID button w/ LED1 x DB15 (VGA)1 x DisplayPort1 x HDMI1 x Serial Port DB94 x USB3.2 Gen1 Type-A2 x RJ45 (1GbE)1 x dedicated IPMI
Internal I/O Connectors
1 x 24-pin, ATX main power2 x 8-pin, ATX 12V1 x Auxiliary Panel Header (18-pin)1 x System Panel1 x VGA header1 x Speaker Header1 x Buzzer7 x Fan Header (6-pin)1 x TPM Header (13-pin, SPI)1 x SMBus header1 x PMBus header1 x IPMB Header
CPU Support
Supports AMD Ryzen 7000 series ProcessorsSingle Socket AM5 (LGA 1718)Up to 170W with proper cooling solutionClick here for CPU support list
Package Type
Retail
Graphics Ports
ASPEED AST2600:1 DB15 (VGA), 1 (15-pin) headerAMD Processors with Graphics:1 HDMI, 1 DisplayPort
Additional Features
See Overview
Graphics
Yes
M.2 Slot(s)
Yes (M.2)
No. LAN Ports
2 x LAN
Max LAN Speed
GB LAN
PCI/PCI Express
PCIe x 16 - SLOT6: PCIe5.0 x16 [CPU]PCIe x 4 - SLOT7: PCIe5.0 x4 [CPU]PCIe x 1 - SLOT4: PCIe4.0 x1 [FCH]
