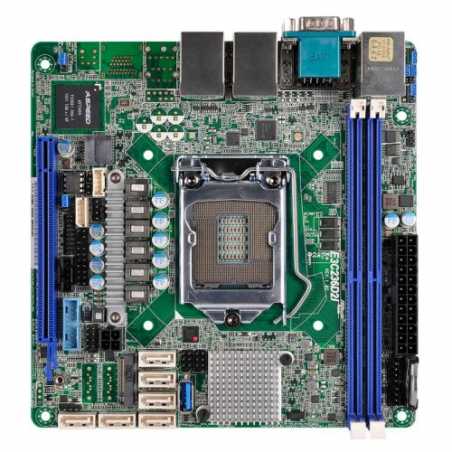

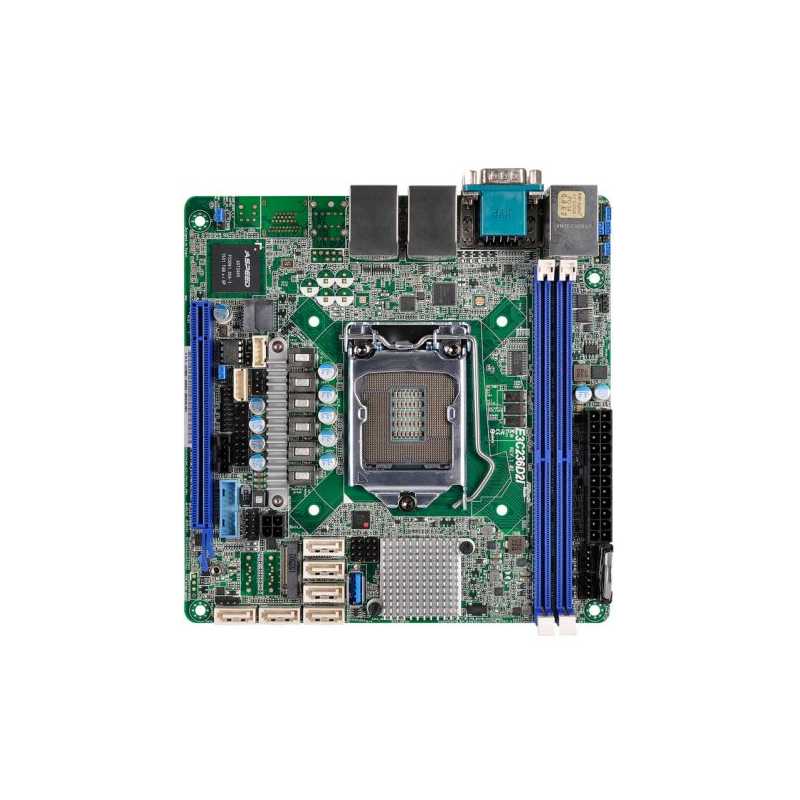

Asrock Rack E3C236D2I Server Board, Intel C236, 1151, Mini ITX, DDR4, Dual GB LAN, IPMI LAN, Serial Port, M.2

Data sheet

.

1 x BMC_SMBUS1 x SGPIO1 x PECI3 x PMBUS Mode Jumpers1 x ME/SPS Recovery1 x Clear CMOS

PCI Express

1 x PCIe 3.0 x 16

RAM Speeds

2133 MHz

USB Ports Supported

6 x USB 3.0 ports (4 at back, 2 at mid-board)1 x Type A USB 3.0 Port (mid-board)2 x USB 2.0 ports (2 at back)

Storage

6 x SATA III1 x M.2 (share with SATA0)

RAID

RAID 0, 1, 5, 10

Warranty

3 Years

Motherboard Type

Server / Workstation

Form Factor

Mini ITX

Socket

Intel 1151 - Sky/Kaby Lake

Chipset

Intel C236

DDR Type

DDR4

RAM Technology

DDR4 (Dual Channel)

RAM Slots

2 x DIMM

Maximum Memory

32GB

Multi-GPU Support

-

PCI

-

LAN

Dual GB LAN & Dedicated IPMI LAN port

Back Panel I/O Ports

1 x VGA Port2 x USB 2.0 Ports4 x USB 3.0 Ports2 x GB LAN1 x RJ45 Dedicated IPMI LAN port1 x Serial Port

Internal I/O Connectors

1 x M.21 x Auxiliary Panel Header1 x TR11 x TPM1 x IPMB3 x Fan1 x ATX Power1 x USB 3.01 x Type A USB 3.0 Port1 x PSU SMB1 x NMI Button1 x Speaker

CPU Support

Click here for CPU support

Package Weight

0.6650 kg

Graphics Ports

1 x VGA

Additional Features

See Overview

Graphics

ASPEED AST2400+ Intel HD GraphicsVRAM - DDR3 256MB (ASPEED)

M.2 Slot(s)

Yes (M.2)

No. LAN Ports

2 x LAN

Max LAN Speed

GB LAN

RGB Lighting

No

PCI/PCI Express

1 x PCIe 3.0 x 16

Specific References

EAN13

4717677328820
