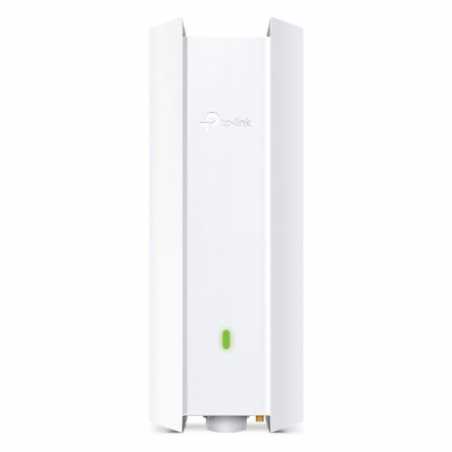

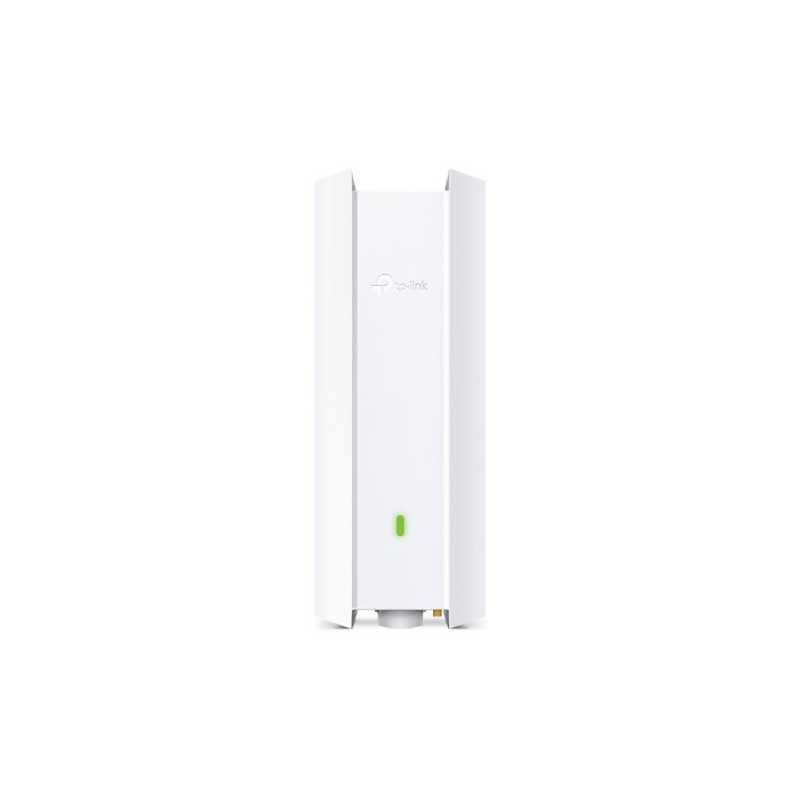

TP-Link Omada EAP650-Outdoor AX3000 Indoor/Outdoor WiFi 6 Access Point
£163.12
VAT included
Delivered within 1-2 days.
Superior WiFi 6 Speeds
Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.
Higher Network Efficiency
Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160.
Long-Range Coverage
Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
Omada Mesh Technology
Enables wireless connectivity between access points for extended range and flexible deployment.
Stay Smooth with Seamless Roaming
Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
PoE Powered
Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
Experience the Peak of WiFi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.
Specifications
Interface
1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48V Passive PoE (PoE Adapter Included)
Power Consumption
12.5W (802.3at PoE or Passive PoE)
Dimensions
280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)
Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Weatherproof Enclosure
IP67
Mounting
Pole/Wall Mounting (Kits included)
Wireless Client Capacity
250+
Concurrent Clients
250+
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz, 5 GHz
Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
<20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes, through
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller
Email Alerts
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-Based Management
Yes
L3 Management
Yes
Multi-Site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
Certification
CE, FCC, RoHS
Package Contents
Access Point EAP650-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
Delivers dual band speeds of up to 3 Gbps powered by the latest WiFi 6 technology.
Higher Network Efficiency
Enjoy faster speeds on more devices with less lag with OFDMA and MU-MIMO.
160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160.
Long-Range Coverage
Dedicated high-power amplifier and professional antennas with an IP67 weatherproof enclosure.
Omada Mesh Technology
Enables wireless connectivity between access points for extended range and flexible deployment.
Stay Smooth with Seamless Roaming
Users can enjoy seamless streaming across the property with their devices switching effortlessly between access points.
PoE Powered
Supports both 802.3at PoE+ and Passive PoE (adapter included) power supply for flexible installation.
Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or the Omada app.
Experience the Peak of WiFi 6 with Smart Antennas
TP-Link Smart Antenna technology brings lower interference, longer coverage, and higher performance. EAP650-Outdoor is equipped with horizontally polarized antennas and vertically polarized antennas, while its intelligent algorithms automatically select the optimal antennas to ensure the peak WiFi experience ideal for outdoor applications.
Specifications
Interface
1x Gigabit Ethernet (RJ-45) Port (Support 802.3at PoE and Passive PoE)
Button
Reset
Power Supply
802.3at PoE
48V Passive PoE (PoE Adapter Included)
Power Consumption
12.5W (802.3at PoE or Passive PoE)
Dimensions
280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)
Antenna
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi
Weatherproof Enclosure
IP67
Mounting
Pole/Wall Mounting (Kits included)
Wireless Client Capacity
250+
Concurrent Clients
250+
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz, 5 GHz
Signal Rate
802.11ax: 8 Mbps to 1201 Mbps (MCS0-MCS11, NSS = 1 to 2 HE20/40/80)
802.11ac: 6.5 Mbps to 1083.3 Mbps (MCS0-MCS9, NSS = 1 to 2 VHT20/40/80)
802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, HT20/40)
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b: 1, 2, 5.5, 11 Mbps
802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
Transmit Power
<20 dBm (2.4 GHz, EIRP), <30 dBm(5 GHz, EIRP)
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS (WMM)
MU-MIMO
Omada Mesh
Seamless Roaming
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Omada App
Yes
Centralized Management
Omada Cloud-Based Controller
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Cloud Access
Yes, through
Omada Cloud-Based Controller
OC300
OC200
Omada Software Controller
Email Alerts
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c
System Logging Local/Remote Syslog
Yes
SSH
Yes
Web-Based Management
Yes
L3 Management
Yes
Multi-Site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
Certification
CE, FCC, RoHS
Package Contents
Access Point EAP650-Outdoor
Passive PoE Adapter
Power Cord
Mounting Kits
Installation Guide
EAP650-OUTDOOR
5 Items
Data sheet
- Warranty
- 2 Years
- Package Type
- Retail
- Type
- Access Point
- Speed
- 3000 Mbps
- Power Supply
- 802.3at PoE48V Passive PoE (PoE Adapter Included)
- Interface(s)
- 1 x Gigabit Ethernet (RJ-45)Support 802.3at PoE and Passive PoE
- Package Contents
- Access Point EAP650-OutdoorPassive PoE AdapterPower CordMounting KitsInstallation Guide
- Power Consumption
- 12.5W (802.3at PoE or Passive PoE)
- Wireless Functions
- 1024-QAM4x Longer OFDM SymbolOFDMAMultiple SSIDs (Up to 16 SSIDs, 8 for each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS (WMM)MU-MIMOOmada MeshSeamless RoamingBand SteeringLoad Bal
- Wireless Security
- Captive Portal AuthenticationAccess ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X SupportWEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
- Dimensions (W x D x H)
- 280.4 x 106.5 x 56.8 mm (without antenna & mounting kit)
- Dual Band
- Yes (Dual Band)
- Antenna
- 2.4 GHz: 2x 4 dBi5 GHz: 2x 5 dBi
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Button(s)
- Reset
- Max Wireless Transfer Rate
- 2402 Mbps
- Max Wired Transfer Rate
- 10/100/1000 Mbps
- Management
- Omada AppCentralized Management (hardware & software)Cloud AccessEmail AlertsManagement MAC Access ControlSNMP: v1, v2cSystem Logging Local/Remote SyslogSSHWeb-based ManagementL3 ManagementMulti-site ManagementManagement VLANZero-Touch Provisioning - Requ
- Frequency
- 2.4 GHz & 5 GHz
- EIRP
- CE:
- Advanced Functions
- See Overview
- Weatherproof
- Yes (Weatherproof)
- Quality of Service
- QoS (WMM)
- POE
- Yes
- Environment (°C)
- Operating Temperature: -30–70°C (-22–158°F)Storage Temperature: -40–70°C (-40–158°F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Primary Function
- Access Point
- Access Point Mode
- Yes (Access Point Mode)
