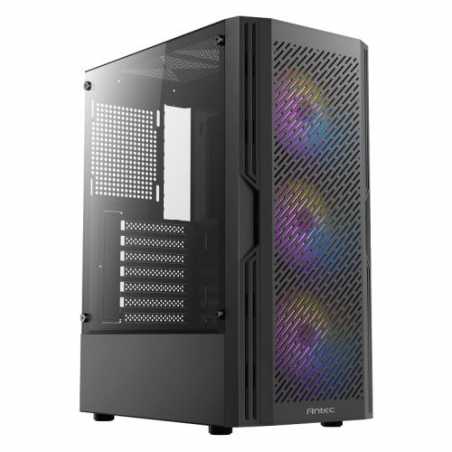

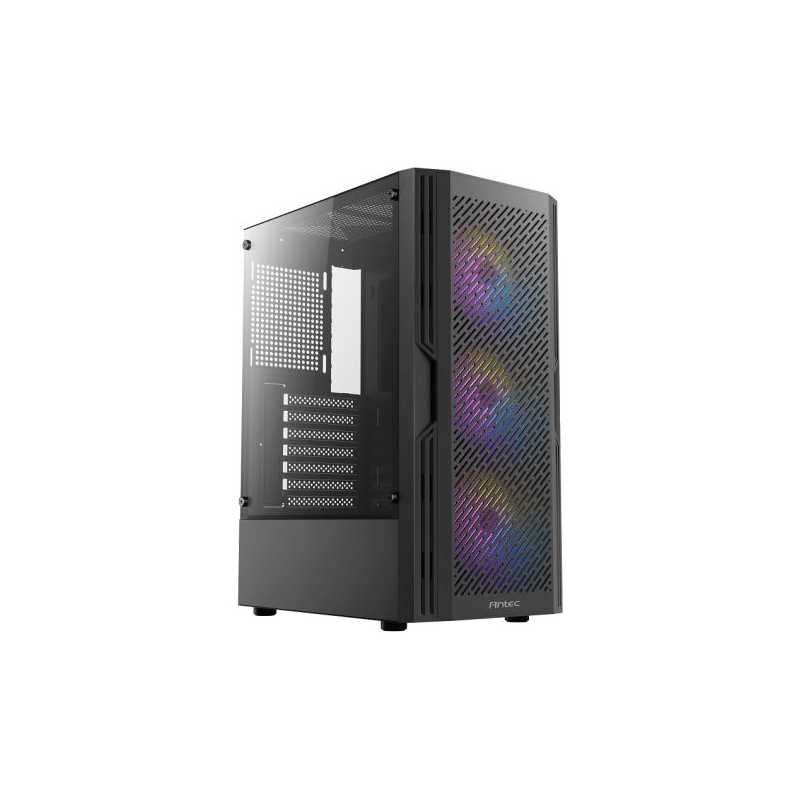

ANTEC AX20 Case, Black, Mid Tower, 1 x USB 3.0 / 2 x USB 2.0, Tempered Glass Side Window Panel, Slanted Bar & Mesh Design for Ma
£41.66
VAT included
AX20
Mid-Tower Gaming Case
Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.
Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.
High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.
Pre-Installed
3 x 120mm RGB Fixed Model Fans
Form Factor
Mid Tower
Materials
Steel
Plastic
Mainboard Support
ATX
Micro ATX
Mini-ITX
RGB
FRGB so no header
I/O Panel
Power
Reset
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO
Side Panel
Tempered glass
Drive Bays
3.5" / 2.5": 2 / 1
2.5": 2
Expansion
Slots: 7
Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm
Included Fans
3 x 120 RGB fixed model fans in front
Radiator Support
Front: 120 / 140 / 240 / 280mm
Clearance
Max GPU Length: = 270mm
Max CPU Cooler Height: = 155mm
Max PSU Length: = 170mm (with HDD) / = 295mm (without HDD)
Dust Filter
Front
Weight
Net: 4 Kgs
Gross: 4.71 Kgs
Dimensions ( D x W x H )
358 x 207 x 451mm
Mid-Tower Gaming Case
Unique Design & Powerful Heat Dissipation
AX20 features a slanted bar air intake design and an exceptional dense mesh for massive heat dissipation. The half-view tempered glass side panel design allows you to show off your gaming configurations without obstacles. The AX20 supports up to 8 x 120 mm fans simultaneously and provides users with diverse cooling options.
Slanted Bar Air Intake Design
Featuring dense mesh for massive airflow and efficient dust prevention.
High-Airflow Front Panel
Massive air intake at the front, top, and bottom. Creating multiple airflow paths.
Pre-Installed
3 x 120mm RGB Fixed Model Fans
Form Factor
Mid Tower
Materials
Steel
Plastic
Mainboard Support
ATX
Micro ATX
Mini-ITX
RGB
FRGB so no header
I/O Panel
Power
Reset
2 x USB 2.0
1 x USB 3.0
MIC / HD-AUDIO
Side Panel
Tempered glass
Drive Bays
3.5" / 2.5": 2 / 1
2.5": 2
Expansion
Slots: 7
Fan Support
Front: 3 x 120mm / 2 x 140mm
Top: 2 x 120mm
Power Supply Shroud: 2 x 120mm
Rear: 1 x 120mm
Included Fans
3 x 120 RGB fixed model fans in front
Radiator Support
Front: 120 / 140 / 240 / 280mm
Clearance
Max GPU Length: = 270mm
Max CPU Cooler Height: = 155mm
Max PSU Length: = 170mm (with HDD) / = 295mm (without HDD)
Dust Filter
Front
Weight
Net: 4 Kgs
Gross: 4.71 Kgs
Dimensions ( D x W x H )
358 x 207 x 451mm
0-761345-10060-1
Data sheet
- .
- Water Cooling options:Front: Up to 280 mm
- Warranty
- 2 Years
- Form Factor
- Mid Tower
- Additional Features
- See Overview
- Colour
- Black
- Weight/Dimensions
- 4 kg(DxWxH) 358 x 207 x 451 mm
- Material
- Steel + PlasticTempered Glass Side Panel
- Power Supply Wattage
- No PSU
- Motherboard Support
- ATX
- Connectors / Controls
- 1 x USB 3.02 x USB 2.0Mic / HD AudioPower buttonReset button
- Drive Bays
- 2/1 x 3.5" / 2.5"2 x 2.5"
- LED Lighting
- Yes (LED Lighting)
- Compatability
- GPU max length:270 mm CPU cooler max height:155 mm PSU max length:170 mm(with HDD)295 mm(without HDD)
- Small Form Factor
- No
- Expansion Slots
- 7 Expansion Slots
- Cooling System
- Included Fans: Front: 3 x 120mm RGB fansFan Mounts:Front: 3 x 120 / 2 x 140 mmTop: 2 x 12 0mmRear: 1 x 120 mm
- LED Colour
- RGB
- Case Colour
- Black
- USB 3.0
- 1
- Side Panel
- Tempered Glass
- Window(s)
- Yes (Window)
- PSU Included
- None
