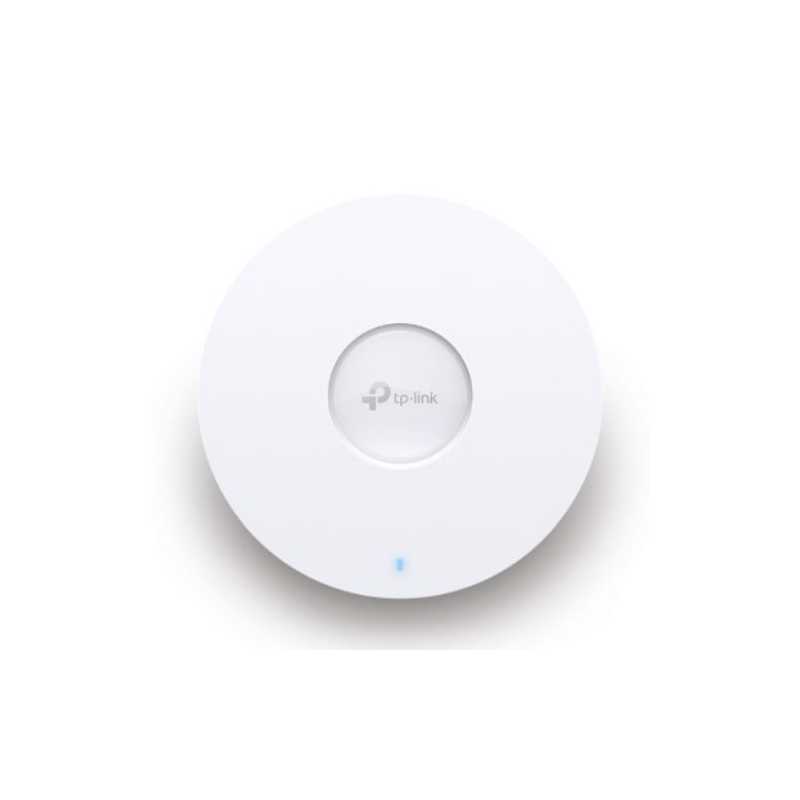

TP-Link Omada EAP650 AX3000 Ceiling Mount WiFi 6 Access Point
£84.90
VAT included
Delivered within 1-2 days.
AX3000 Ceiling Mount WiFi 6 Access Point
Ultra-Fast WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds.
Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming
Video streams and voice calls are unaffected as users move between locations.
Omada Mesh
Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered
Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Ultra-Slim Design
160 mm x 33.6 mm elegant design brings more agility
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz
Specifications
HARDWARE FEATURES
Interface
1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US)
48V Passive PoE
Power Consumption
EU: 13.5 W
US: 14.7 W
Dimensions ( W x D x H )
6.3 x 6.3 x 1.3 in (160 x 16 x 33.6 mm)
Antenna Type
Internal Omni
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4 x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP650
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 0–40 C (32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Ultra-Fast WiFi 6 Speeds
Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
High-Efficiency WiFi 6
More connected devices can enjoy faster speeds.
Centralized Cloud Management
Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
160 MHz Channel
Double the data at peak transmission times on a single stream with HE160.
Seamless Roaming
Video streams and voice calls are unaffected as users move between locations.
Omada Mesh
Enables wireless connectivity between access points for extended range and flexible deployment.
PoE+ Powered
Supports both 802.3at PoE+ and DC (adapter included) power supply for flexible installations.
Ultra-Slim Design
160 mm x 33.6 mm elegant design brings more agility
AX3000 WiFi 6 Speed
2402 Mbps on 5 GHz
574 Mbps on 2.4 GHz
Specifications
HARDWARE FEATURES
Interface
1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12 V / 1.0 A DC (EU), 12 V / 1.5 A DC (US)
48V Passive PoE
Power Consumption
EU: 13.5 W
US: 14.7 W
Dimensions ( W x D x H )
6.3 x 6.3 x 1.3 in (160 x 16 x 33.6 mm)
Antenna Type
Internal Omni
2.4 GHz: 2 x 4 dBi
5 GHz: 2 x 5 dBi
Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4 x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
<20 dBm(2.4 GHz, EIRP)
<23 dBm(5 GHz, Band1 & Band2, EIRP)
<30 dBm(5 GHz, Band3, EIRP)
FCC:
<25 dBm (2.4 GHz)
<25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
SSH
Yes
Web-based Management
HTTP/HTTPS
L3 Management
Yes
Multi-site Management
Yes
Management VLAN
Yes
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller.
OTHERS
Certification
CE, FCC, RoHS
Package Contents
EAP650
Power Adapter
Ceiling/Wall Mounting Kits
Installation Guide
System Requirements
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux
Environment
Operating Temperature: 0–40 C (32–104 F)
Storage Temperature: -40–70 C (-40–158 F)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
EAP650
4 Items
Data sheet
- .
- Seamless RoamingOmada Mesh§Band SteeringLoad BalanceAirtime FairnessBeamformingRate LimitReboot ScheduleWireless ScheduleWireless Statistics based on SSID/AP/Client
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Power Supply
- 802.3at PoE12V DC (Power Adapter included)
- Interface(s)
- 1 x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
- Package Contents
- EAP650Power AdapterCeiling/Wall Mounting KitsInstallation Guide
- Power Consumption
- 13.5 W
- Wireless Functions
- 1024-QAM4x Longer OFDM SymbolOFDMAMultiple SSIDs (Up to 16 SSIDs, 8 for each band)Enable/Disable Wireless RadioAutomatic Channel AssignmentTransmit Power Control (Adjust Transmit Power on dBm)QoS(WMM)MU-MIMOHE160 (160 MHz Bandwidth)
- Wireless Security
- Captive Portal Authentication§Access ControlWireless Mac Address FilteringWireless Isolation Between ClientsSSID to VLAN MappingRogue AP Detection802.1X SupportWPA-Personal/EnterpriseWPA2-Personal/EnterpriseWPA3-Personal/Enterprise
- Dimensions (W x D x H)
- 160 x 160 x 33.6 mm
- Dual Band
- Yes (Dual Band)
- Antenna
- Internal Omni2.4 GHz: 2x 4 dBi5 GHz: 2x 5 dBi
- Wireless Standards
- IEEE 802.11ax/ac/n/g/b/a
- Button(s)
- Reset
- Max Wireless Transfer Rate
- 2402 Mbps
- Max Wired Transfer Rate
- 10/100/1000 Mbps
- Management
- Omada App Centralized Management Cloud Access Email Alerts LED ON/OFF Control Management MAC Access Control SNMPSystem Logging Local/Remote Syslog SSHWeb-based Management L3 Management Multi-site Management Management VLAN Zero-Touch Provisioning
- Frequency
- 5 GHz: Up to 2402 Mbps2.4 GHz: Up to 574 Mbps
- Advanced Functions
- See Overview
- Weatherproof
- No
- Quality of Service
- QoS(WMM)
- Environment (°C)
- Operating Temperature: 0–40 °C (32–104 °F)Storage Temperature: -40–70 °C (-40–158 °F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
- Primary Function
- Access Point
- Access Point Mode
- Yes (Access Point Mode)
