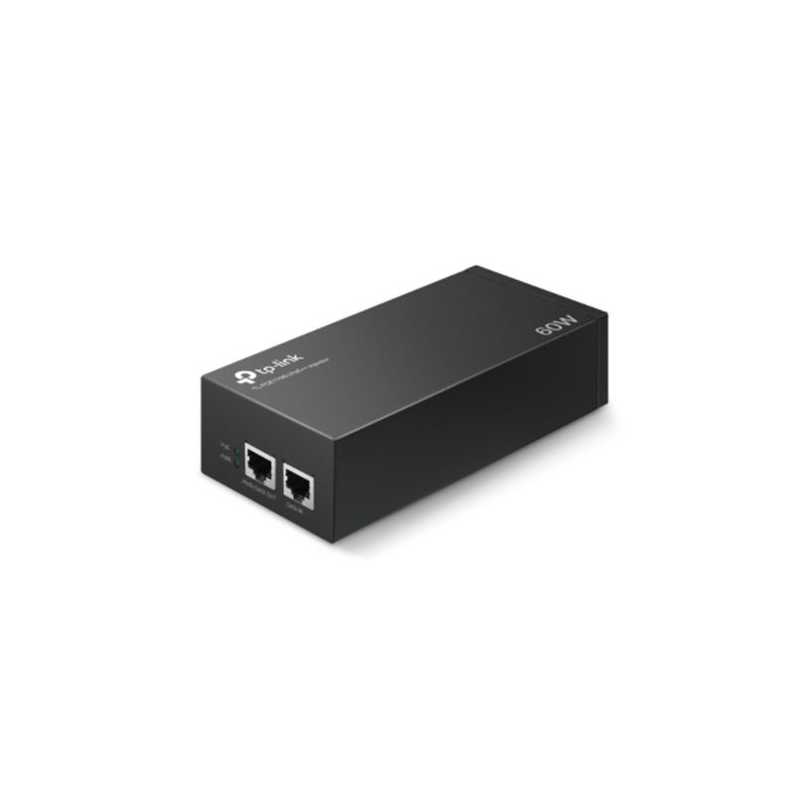

TP-Link TL-POE170S IEEE 802.3af/at/bt 60W PoE++ Injector
£47.21
VAT included
Delivered within 1-2 days.
- 2 Gigabit ports ensure faster transmission
- Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
- Durable metal casing
The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
*TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor.
Specifications
NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
GENERAL
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
Material
Metal Casing
PACKAGE CONTENTS
Package Contents
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable
HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
Dimensions ( W x D x H )
6.1*2.8*1.7 in (155*70*42 mm)
- Complies with IEEE802.3af/at/bt* standards, supplies up to 60 W
- Reduces infrastructure costs by transmitting data and power simultaneously via an Ethernet cable
- Automatically determines and supplies the exact power to meet the device's need
- Wall-mounting and desktop design accommodates most installation scenarios
- Plug & Play installation, requires no configuration
- Integrated power supply
- Durable metal casing
The PoE++ Injector TL-POE170S fully complies with IEEE 802.3af/at/bt standards with up to 60 W power supply. It can easily expand your network to where there are no power line or outlet, where you wish to fix devices such as PTZ IP Cameras, LED, etc.
*TL-POE170S is incompatible with EAP235, EAP225, and EAP225-Outdoor.
Specifications
NETWORK
Standards and Protocols
IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt
GENERAL
Certification
FCC, CE, RoHS
Environment
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Operating Humidity: 10% to 90%RH non-condensing
Storage Humidity: 5% to 90%RH non-condensing
Material
Metal Casing
PACKAGE CONTENTS
Package Contents
PoE++ Injector TL-POE170S
Installation Guide
Power Cord
RJ45 Cable
HARDWARE FEATURES
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
100BASE-TX: UTP category 5, 5e cable (maximum 100 m)
EIA/TIA-568 100O STP (maximum 100 m)
1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)
Ports
1 10/100/1000Mbps RJ45 data-in port
1 10/100/1000Mbps RJ45 power+data-out port
1 AC socket
Power Consumption
Input: 100-240 V, 50/60 Hz, 1.6A
Output: Auto-determine the necessary power requirements (max. 60 W)
Basic Function
Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD
Auto-determine the necessary power requirements
Wall-mounting and desktop installation supported
Plug-and-Play
Dimensions ( W x D x H )
6.1*2.8*1.7 in (155*70*42 mm)
TL-POE170S
2 Items
Data sheet
- Warranty
- 2 Years
- Package Type
- Retail
- Dimensions
- 155 x 70 x 42 mm
- Speed
- Gigabit
- Power Supply
- Input: 100-240 V, 50/60 Hz, 1.6AOutput: Auto-determine the necessary power requirements (max. 60 W)
- Interface(s)
- 1 x 10/100/1000Mbps RJ45 data-in port1 x 10/100/1000Mbps RJ45 power+data-out port1 x AC socket
- Basic Function
- Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PDAuto-determine the necessary power requirementsWall-mounting and desktop installation supportedPlug-and-Play
- Environment (℃)
- Operating Temperature: 0C to 45C (32F to 113F)Storage Temperature: -40C to 70C (-40F to 158F)Operating Humidity: 10% to 90% non-condensingStorage Humidity: 5% to 90% non-condensing
- Connection Type
- PoE Injector
- Access Point
- No
