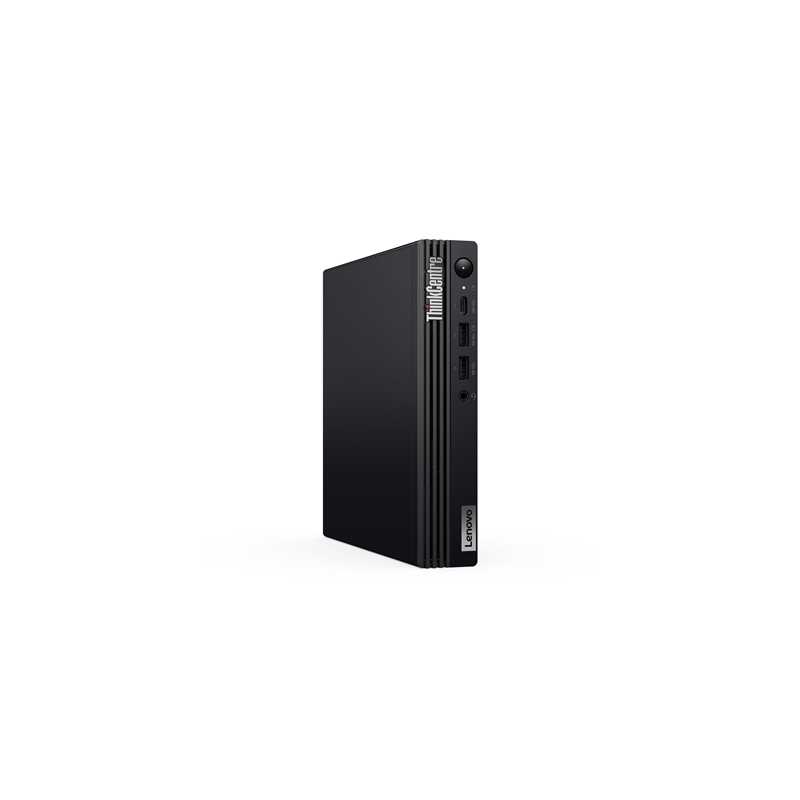

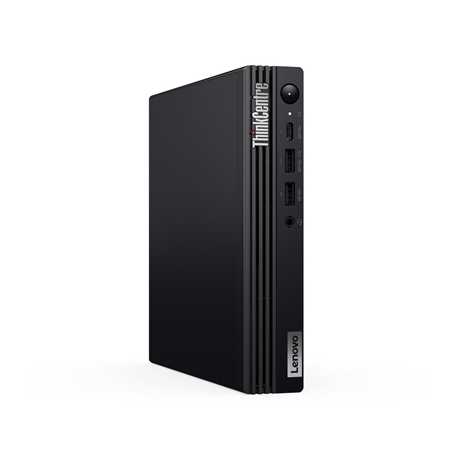

Lenovo ThinkCentre M70q G5 12TD0094UK Tiny PC, Intel Core i7-14700T 14th Gen, 16GB DDR5 RAM, 512GB SSD, Intel UHD Graphics 770,

Lenovo ThinkCentre M70q Gen 5 Intel Core i7-14700T 16GB RAM 512GB SSD Windows 11 Pro Tiny PC
The Lenovo ThinkCentre M70q Gen 5 is a cutting-edge Tiny PC that combines powerful performance with a compact design, making it ideal for both professional and personal use. Equipped with the latest Intel Core i7-14700T processor, this desktop delivers exceptional speed and efficiency for multitasking and demanding applications. With 16GB of DDR5 RAM and a spacious 512GB SSD, you can expect quick access to your files and seamless operation of your favourite software. Plus, the included Windows 11 Pro ensures a modern user experience filled with enhanced features and security.

PERFORMANCE Processor
Intel® Core™ i7-14700T, 20C (8P + 12E) / 28T, Max Turbo up to 5.2GHz, P-core 1.3 / 5.0GHz, E-core 0.9 / 3.7GHz, 33MB

Graphics
Integrated Intel® UHD Graphics 770

Chipset
Intel® Q670 Chipset

Memory
1x 16GB SO-DIMM DDR5-5600

Memory Slots
Two DDR5 SO-DIMM slots, dual-channel capable

Max Memory
Up to 64GB (2x 32GB DDR5 SO-DIMM)

Storage
512GB SSD M.2 2280 PCIe® 4.0x4 NVMe® Opal

Max Storage Support
Dual SSD mode: up to two drives, 2x M.2 SSD
M.2 2280 SSD up to 2TB

RAID Preset
None

Card Reader
No card reader

Optical
None

Audio Chip
High Definition (HD) Audio, Realtek® ALC233VB or Conexant CX11771 codec

Speakers
2W x 1

Power Supply
135W 89% Adapter

DESIGN Keyboard
USB Traditional Keyboard, Black, English (UK)

Mouse
USB Calliope Mouse, Black

Expansion Slots
Three M.2 slots (one for WLAN, two for SSD)

Case Color
Black

Stand
None

Adapter Cage
None

Toolless Chassis Screw
Toolless Chassis Screw

Dust Filter
None

Mounting
VESA Mount

IO Box
No IO box

Pen
Pen Not Supported

Form Factor
Tiny (1L)

Dimensions (W x D x H)
179 x 182.9 x 36.5 mm with rubber feet (7.05 x 7.2 x 1.44 inches with rubber feet)

Weight
Around 1.25 kg (2.76 lbs)

CONNECTIVITY WLAN + Bluetooth
Intel® Wi-Fi® 6E AX211, 802.11ax 2x2 + BT5.3, vPro®

WWAN
Non-WWAN

Ethernet
Integrated 100/1000M

Front Ports
1x USB-C® (USB 5Gbps / USB 3.2 Gen 1), with [5V@0.9A](mailto:5V@0.9A) charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [5V@2.1A](mailto:5V@2.1A) charging
1x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x headphone / microphone combo jack (3.5mm)

Optional Front Ports (configured)
None

Rear Ports
1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on
1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
2x USB-A (USB 10Gbps / USB 3.2 Gen 2)
1x HDMI® 2.1 TMDS
1x DisplayPort™ 1.4a (HBR2, DSC)
1x Ethernet (RJ-45)

Optional Rear Ports (configured)
DP 1.4

SECURITY & PRIVACY Security Chip
Discrete TPM 2.0, TCG certified, FIPS 140-2 certified

Fingerprint Reader
No fingerprint reader

Physical Locks
Kensington® Security Slot™, 3 x 7 mm

Kensington Cable Lock
None

Chassis Intrusion Switch
Chassis Intrusion Switch

MANAGEABILITY System Management
Intel® vPro® Enterprise

SERVICE Base Warranty
1-year, Onsite

Included Upgrade
1Y Premier Support TC DT/AIO Mainstream/Halo WHB (CPN), CO2 Offset 0.5 ton (2nd Generation Carbon Offset Projects)

CERTIFICATIONS Green Certifications
ENERGY STAR® 8.0
EPEAT™ Silver Registered
ENERGY STAR® 8.0
ErP Lot 3/7
RoHS compliant
TCO Certified

## Other Certifications

Mil-Spec Test
MIL-STD-810H military test passed (Low Pressure [Altitude], High Temperature, Low Temperature, Temperature Shock, Humidity, Sand and Dust, Vibration, Shock, Solar Radiation, Contamination by Fluids, Salt Fog)

SOFTWARE Operating System
Windows® 11 Pro, English

Bundled Software
None

ACCESSORIES Bundled Accessories
None
