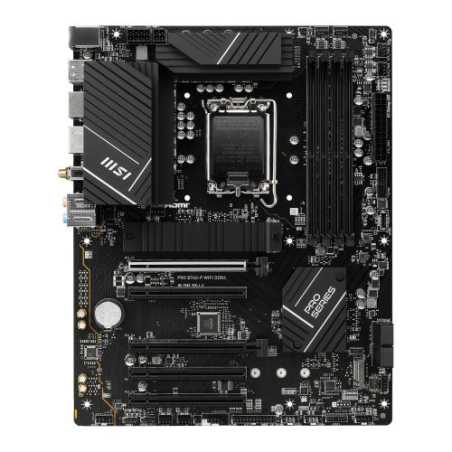

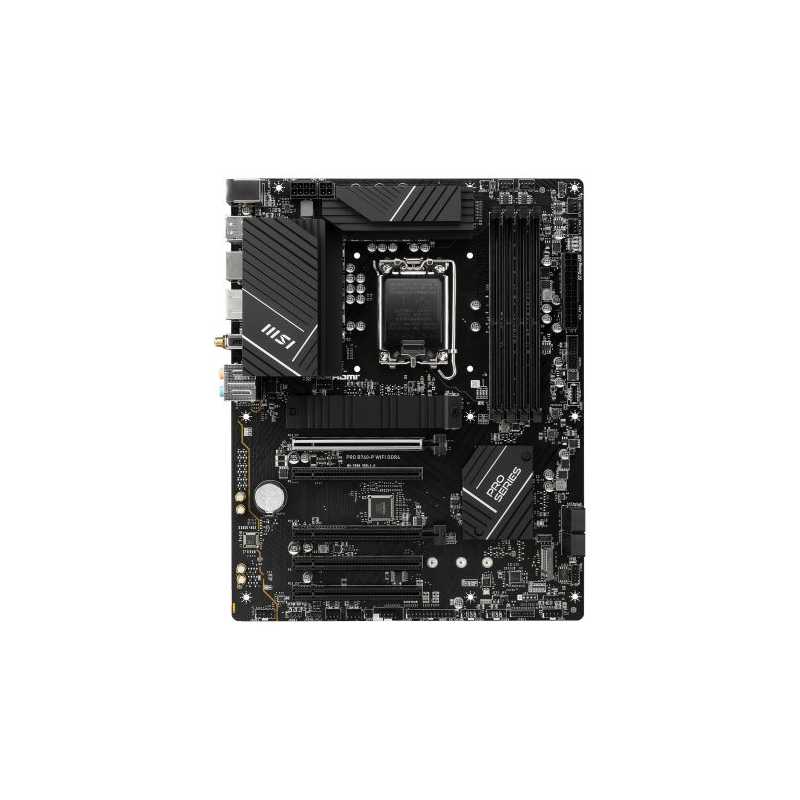

MSI PRO B760-P WIFI DDR4, Intel B760, 1700, ATX, 4 DDR4, HDMI, DP, Wi-Fi 6E, 2.5G LAN, 2x M.2
£141.17
VAT included
Delivered within 1-2 days.
PRO B760-P DDR4 is designed with tons of flexible tools with DDR4 memory version.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, Dual Channel DDR4 5333+MHz (OC)
- Enhanced Power Design: 12+1 Duet Rail Power System with P-PAK, 8-pin + 4-pin CPU power connectors, Core Boost, Memory Boost
- Premium Thermal Solution: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- High Quality PCB: 6-layer PCB made by 2oz thickened copper
- Lightning Fast Game experience: PCIe 4.0 slot, Lightning Gen 4 x4 M.2
- Intel Turbo USB 3.2 Gen 2: Powered by Intel USB 3.2 Gen2 controller, Turbo USB ensures an uninterrupted connection with more stability and fastest USB speeds
- 2.5G LAN with Wi-Fi 6E Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Business Elegance Redefined
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
Lightning Gen4 Solution
The latest Gen4 PCI-E and M.2 solution with up to 64GB/s bandwidth for maximum transfer speed.
Wi-Fi 6E
The latest wireless solution supports 6GHz spectrum, MU-MIMO and BSS color technology, delivering speeds up to 2400Mbps.
Extended Heatsink Design
MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
M.2 Shield FROZR
Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster.
2.5G Network Solution
Featuring premium 2.5G LAN to deliver better network experience.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
PRO B760-P WIFI DDR4
6 Items
Data sheet
- .
- 1 x TPM pin TPM 2.04 x USB 2.02 x USB 5Gbps Type-A1 x USB 5Gbps Type-C
- Wireless
- Intel Wi-Fi 6EThe Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4GbpsSupports 802.11 a/ b/ g/ n/ ac/ axSupports Bluetooth 5.3, FIPS, FISMA
- RAM Speeds
- up to 5333(OC)
- Accessories
- EU Regulatory NoticeQuick Installation GuideEZ M.2 ClipSATA CableWi-Fi AntennaI/O Shield
- USB Ports Supported
- Rear:1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 2.0Front:1 x USB 5Gbps Type-C2 x USB 5Gbps Type-A 4 x USB 2.0
- Storage
- 4 x SATA III2 x M.2M.2_1 (22110/2280/2260/2242) - PCIe 4.0 x4M.2_2 (2280/2260/2242) - SATA & PCIe 4.0 x4
- RAID
- Supports RAID 0, 1, 5 and 10 for SATA storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- Intel 1700
- Chipset
- Intel B760
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)Supports non-ECC, un-buffered memorySupports Intel Extreme Memory Profile (XMP)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 128GB
- LAN
- 2.5GB LAN
- Audio
- Realtek ALC897 Codec7.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x USB 10Gbps Type-C 2 x USB 10Gbps Type-A 4 x USB 2.01 x DisplayPort 1.41 x HDMI 2.11 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In1 x S/PDIF Optical Out2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x CPU Fan1 x Pump Fan5 x System Fan2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Printer Port1 x Com Port2 x Addressable V2 RGB LED1 x RGB LED
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- To be confirmed
- Graphics Ports
- 1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 2.5GB LAN
- PCI/PCI Express
- 2 x PCIe 4.0 x163 x PCIe 3.0 x1
- Wi-Fi
- Yes (Wi-Fi)
