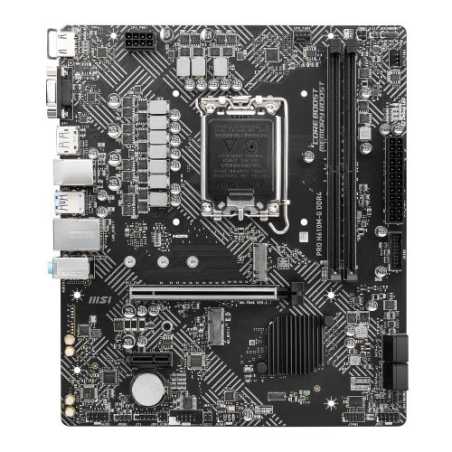

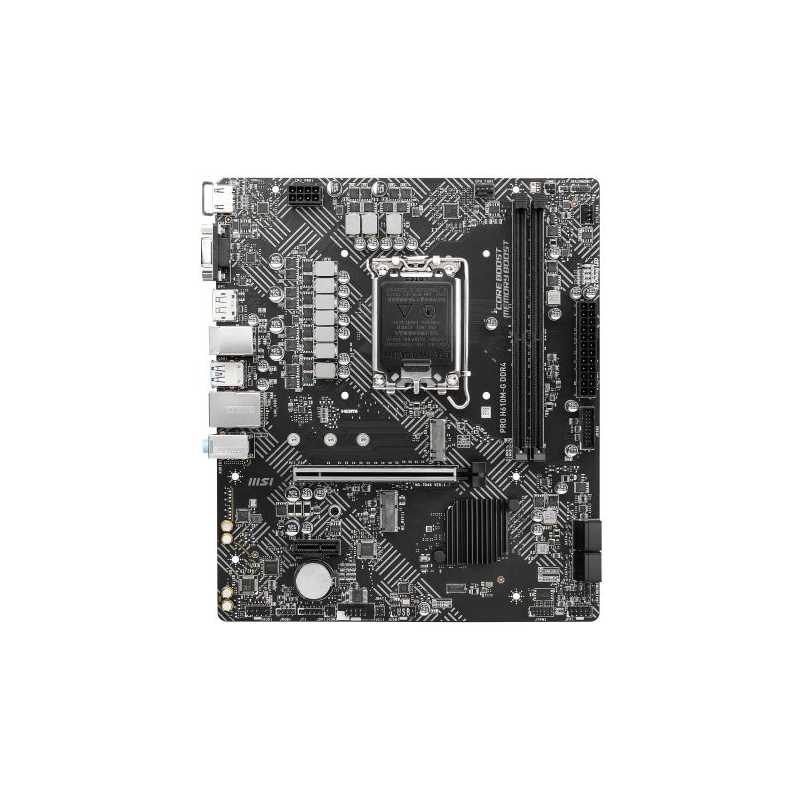

MSI PRO H610M-G DDR4, Intel H610, 1700, Micro ATX, 2 DDR4, VGA, HDMI, DP, GB LAN, 1x M.2
£76.59
VAT included
Delivered within 1-2 days.
PRO series helps users work smarter by delivering an efficient and productive experience.
Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket
- Supports DDR4 Memory, up to 3200(MAX) MHz
- Core Boost : With premium layout and digital power design to support more cores and provide better performance
- Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility
- Lightning Fast Experience: PCIe 4.0
- Audio Boost: Reward your ears with studio grade sound quality
- Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength.
Lightning Gen4 Solution
The Gen4 PCI-E solution with up to 64GB/s bandwidth for maximum transfer speed.
Memory Boost
Advanced technology to deliver pure data signals for the best performance, stability and compatibility.
PCI-E Steel Armor
Protecting VGA cards against bending and EMI.
Core Boost
With premium layout and fully digital power design to support more cores and provide better performance.
EZ Debug LED
Easiest way to troubleshoot.
Frozr AI Cooling
Detect CPU & GPU temperatures and automatically adjust system fan duty to a proper value.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
PRO H610M-G DDR4
94 Items
Data sheet
- Wireless
- -
- RAM Speeds
- Up to 3200 MHz
- Accessories
- Quick Installaion GuideM.2 Clip2 x SATA CablesProduct Registration CardI/O ShieldDriver DVDMSI Case Badge
- USB Ports Supported
- Rear:2 x USB 5Gbps Type-A4 x USB 2.0Front:2 x USB 5Gbps Type-A2 x USB 2.0
- Storage
- 4 x SATA III1 x M.2 (2242/2260/2280) - PCIe 3.0 x4
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- Intel 1700
- Chipset
- Intel H610
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)Supports non-ECC, un-buffered memory
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 64GB
- LAN
- GB LAN
- Audio
- Realtek ALC892/ ALC897 Codec7.1-Channel High Definition Audio
- Back Panel I/O Ports
- 2 x USB 5Gbps Type-A4 x USB 2.01 x DisplayPort 1.41 x HDMI 2.11 x VGA1 x PS/2 Keyboard/Mouse Combo1 x RJ-451 x Audio Line In1 x Audio Line Out1 x Microphone In
- Internal I/O Connectors
- 1 x Power (ATX_PWR)1 x Power (CPU_PWR)1 x CPU Fan1 x System Fan1 x Front Panel1 x Chassis Intrusion1 x Front Audio 1 x TPM1 x USB 2.01 x USB 5Gbps Type-A
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Package Weight
- 0.8040 kg
- Graphics Ports
- 1 x VGA1 x HDMI1 x DisplayPort
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- GB LAN
- PCI/PCI Express
- 1 x PCIe 4.0 x161 x PCIe 3.0 x1
