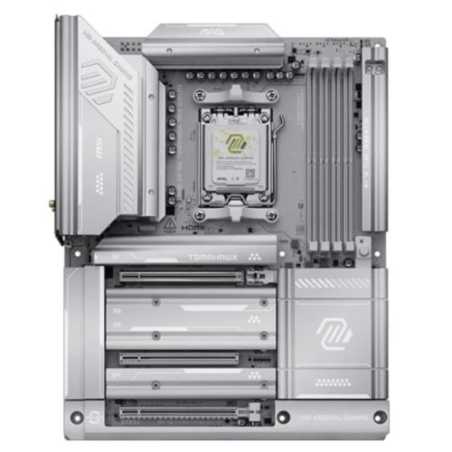

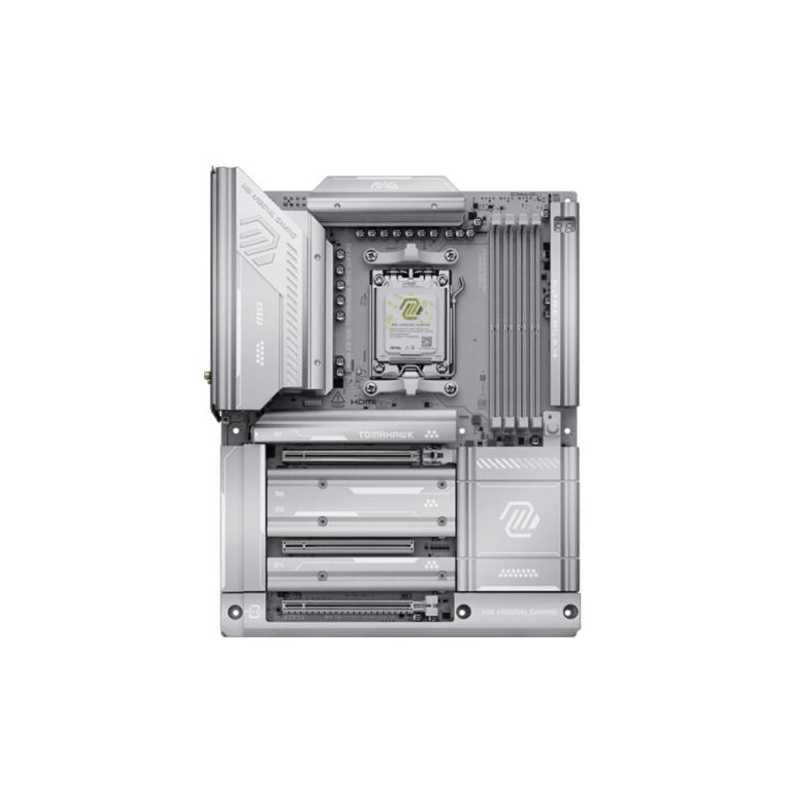

MSI MAG X870E TOMAHAWK MAX WIFI PZ, AMD X870E, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 5G LAN, 4x M.2, Back-Connect Design
£348.00
VAT included
Delivered within 1-2 days.
MAG X870E TOMAHAWK MAX WIFI PZ is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds.
Coming up with true Wi-Fi 7 solution, 5G LAN, USB 40Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ PCIe Release, EZ M.2 Shield Frozr II, EZ M.2 Clip II and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2
- Ultra Connect: USB4 and 5G LAN with Wi-Fi 7 Solution - the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience
MAG - MSI Aresnal Gaming
MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Back-Connect Design
Move the connectors to the back to provide a cleaner and neater front view and significantly reduces the difficulty of cable management.
64MB BIOS
A larger BIOS ROM capacity allows the motherboard to support next-level CPU upgrades with better compatibility.
OC Engine
With the clock generator, the OC Engine technology releases the maximum power of CPU.
Lightning USB 40G
Featuring a built-in USB 4 port, it offers a lightning-fast 40Gbps transmission speed.
EZ PCIe Release
A simple press of a button to effortlessly lock or unlock the PCIe slot, simplifying the installation and removal of the graphics card.
EZ M.2 Shield Frozr II
The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
Quadruple M.2 Connectors
Onboard quadruple M.2 connectors for the maximum storage performance.
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
MAG X870E TOMAHAWK MAX WIFI PZ
5 Items
Data sheet
- .
- 1 x TPM pin TPM 2.02 x Direct OC Jumper4 x USB 2.04 x USB 5Gbps Type-A1 x USB 20Gbps Type-C
- Wireless
- Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
- RAM Speeds
- Up to 8400+(OC)
- USB Ports Supported
- Rear:2 x USB 40Gbps Type-C1 x USB 10Gbps Type-C2 x USB 10Gbps Type-A3 x USB 5Gbps Type-A4 x USB 2.0Front:1 x USB 20Gbps Type-C4 x USB 5Gbps Type-A4 x USB 2.0
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD X870E
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports AMD POR Speed and JEDEC SpeedSupports Memory Overclocking and AMD EXPOSupports CUDIMM, Clock Driver bypass mode only
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC4080 Codec7.1-Channel USB High Performance Audio
- Back Panel I/O Ports
- 2 x USB 40Gbps Type-C1 x USB 10Gbps Type-C2 x USB 10Gbps Type-A3 x USB 5Gbps Type-A4 x USB 2.01 x Clear CMOS Button1 x 5G LAN2 x Wi-Fi / Bluetooth2 x Audio Connectors1 x Flash BIOS Button1 x HDMI1 x Optical S/PDIF Out
- Internal I/O Connectors
- 1 x Power (ATX_PWR)2 x Power (CPU_PWR)1 x Power (PCIE_PWR 8pin)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)6 x System Fan1 x EZ Conn-header (JAF_2)2 x Front Panel1 x Chassis Intrusion1 x Front Audio 3 x Addressable V2 RGB LED1 x RGB LED
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x161 x PCIe 4.0 x161 x PCIe 3.0 x1 *Specifications may vary between CPU types
- Wi-Fi
- Yes (Wi-Fi)
- Back-Connect Support
- Yes (Back-Connect)
