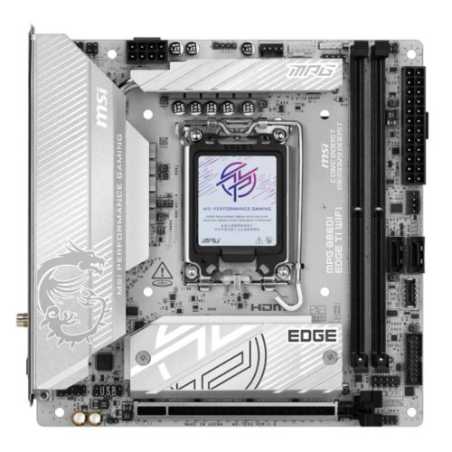

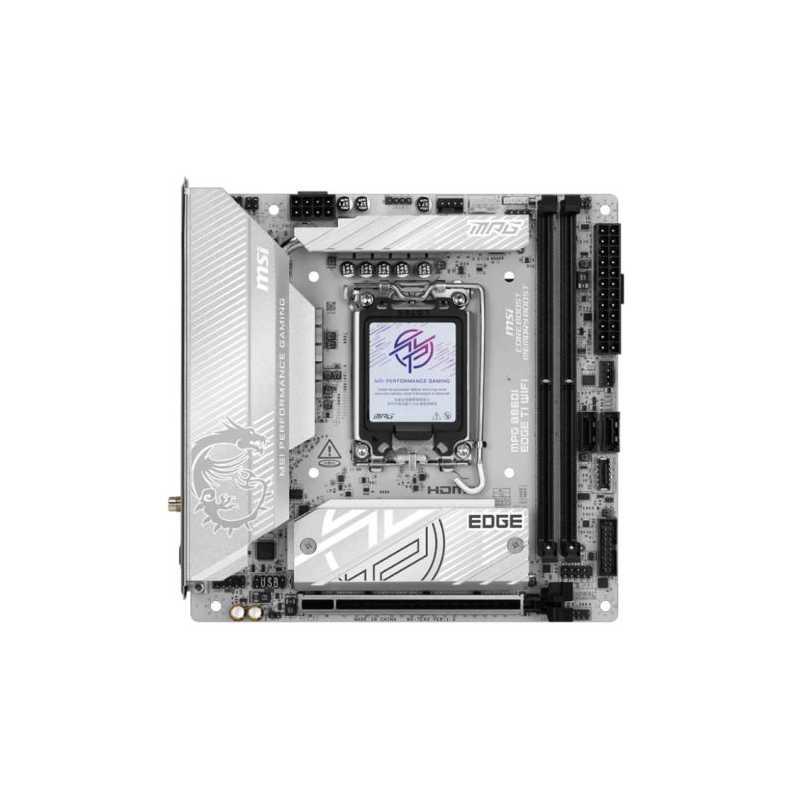

MSI MPG B860I EDGE TI WIFI, Intel B860, 1851, Mini ITX, 2 DDR5, HDMI, TB4, Wi-Fi 7, 5G LAN, 2x M.2
£214.58
VAT included
Delivered within 1-2 days.
MPG B860I EDGE TI WIFI is a mini-ITX B860 motherboard with incredible power and expansion.
It features robust power design, Killer Wi-Fi 7 and 5G LAN, Thunderbolt™ 4, PCIe 5.0 connecitvity. It is definetly the best B860 mini-ITX motherboard for Intel Core Ultra processors.
- Support Intel® Core™ Ultra Processors (Series 2) for LGA 1851 socket
- Supports DDR5 Memory, up to 8600+ MT/s (OC)
- Ultra Performance: 8+1+1+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
- Frozr Guard: Enlarged heatsink with heat-pipe, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
- EZ DIY: EZ Antenna, EZ Button and EZ Debug LED
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 M.2
- Ultra Connect: Thunderbolt™ 4 and Intel® Killer™ 5G LAN with Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost: Reward your ears with studio grade sound quality for the most immersive gaming experience
Ready for AI PC
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
- AI Engine - provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
- AI LAN Manager - optimizes networking performance and minimizes latency, providing a seamless online experience.
- Frozr AI Cooling - automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
- AI Boost - is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Premium Thermal Design
Heavy plated MOSFET heatsink with heat-pipe / high quality 7W/mK MOSFET thermal pads / extra choke thermal pads / onboard M.2 Shield Frozr
Lightning Gen 5
The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
Latest DDR5 Memory
A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
Dual M.2 Connectors
Onboard 2x M.2 Connectors with one PCIe 5.0 solution, strengthened by M.2 Shield Frozr.
Thunderbolt™ 4 port
Thunderbolt™ 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
5G Network Solution
Featuring premium 5G LAN to deliver better network experience.
Wi-Fi 7
The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
Audio Boost
Reward your ears with studio grade sound quality for the most immersive audio experience.
MPG B860I EDGE TI WIFI
4 Items
Data sheet
- .
- 2 x USB 5Gbps Type-A1 x USB 10Gbps Type-C
- Wireless
- Intel Killer BE1750x Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slotSupports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz (320MHz) up to 5.8GbpsSupports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth 5.4, MLO, 4KQAM
- RAM Speeds
- Up to 8600MT/s (OC)
- Accessories
- EU Regulatory NoticeQuick Installation GuideCable StickersEZ Wi-Fi AntennaSATA CableM.2 ScrewARGB Extension CableEZ Front Panel Cable
- USB Ports Supported
- Rear:1 x Thunderbolt 4 (USB Type-C)1 x USB 10Gbps Type-C1 x USB 10Gbps Type- A4 x USB 5Gbps Type-AFront:1 x USB 10Gbps Type-C2 x USB 5Gbps2 x USB 2.0
- Storage
- 2 x SATA III2 x M.2M.2_1 (2280) - PCIe 5.0 x4M.2_2 (2280) - SATA & PCIe 4.0 x4
- RAID
- Supports RAID 0 and RAID 1 for SATA storage devices
- Warranty
- 3 Years
- Motherboard Type
- Desktop
- Form Factor
- Mini ITX
- Socket
- Intel 1851
- Chipset
- Intel B860
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)Supports Non-ECC, Un-buffered memorySupports Intel POR Speed and JEDEC SpeedSupports Memory Overclocking and Intel XMP 3.0Supports Dual-Controller Dual-Channel modeSupports CUDIMM
- RAM Slots
- 2 x DIMM
- Maximum Memory
- 128GB
- LAN
- 5GB LAN
- Audio
- Realtek ALC897 Codec7.1-Channel High Definition Audio
- Back Panel I/O Ports
- 1 x Thunderbolt 4 (USB Type-C)1 x USB 10Gbps Type-C1 x USB 10Gbps Type- A4 x USB 5Gbps Type-A1 x HDMI 2.11 x RJ-451 x Audio Line Out1 x Microphone In1 x S/PDIF Optical Out2 x SMA Antenna
- Internal I/O Connectors
- 1 x Power (ATX_PWR)1 x Power (CPU_PWR)1 x CPU Fan1 x Combo Fan (Pump_Sys Fan)1 x System Fan2 x Front Panel1 x Chassis Intrusion1 x Front Audio1 x Addressable V2 RGB LED1 x RGB LED1 x TPM pin TPM 2.02 x USB 2.0
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI1 x Thunderbolt 4 supports DisplayPort and Thunderbolt video outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 1 x LAN
- Max LAN Speed
- 5GB LAN
- PCI/PCI Express
- 1 x PCIe 5.0 x16
- Wi-Fi
- Yes (Wi-Fi)
