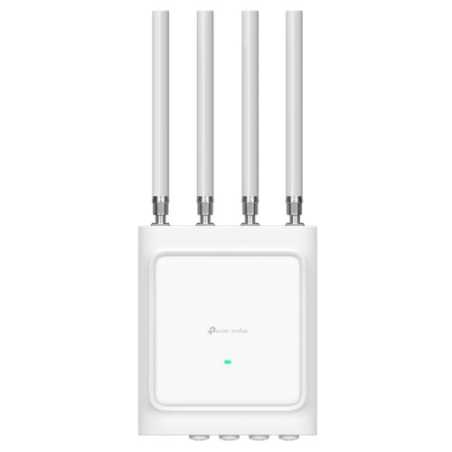

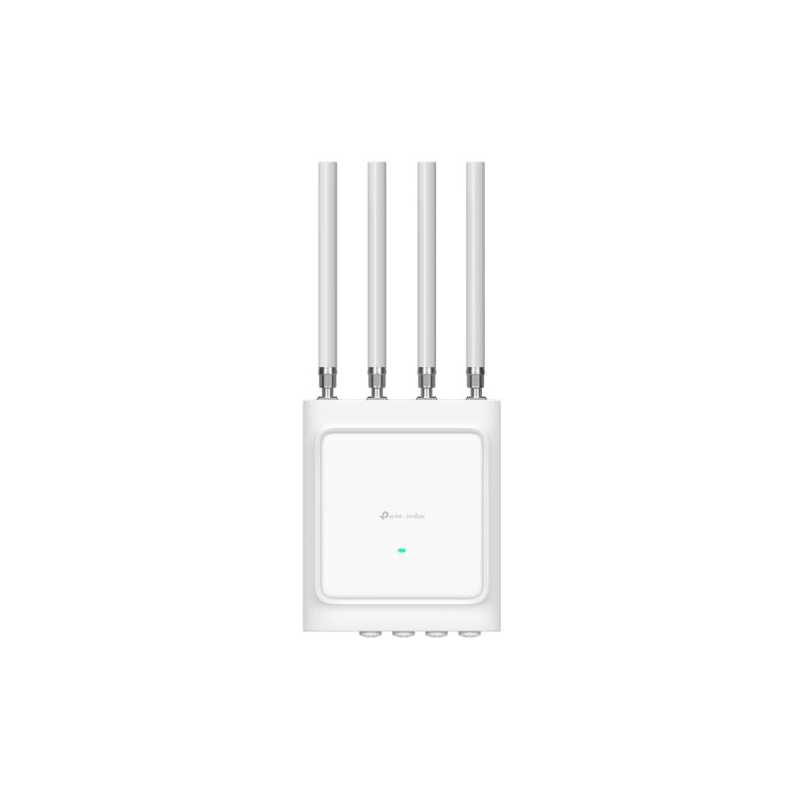

TP-LINK (EAP668-OUTDOOR HD) Omada AX3600 Indoor/Outdoor WiFi 6 Access Point, Dual Band, Up to 1024 Devices, 10G SFP+, PoE, Omada
search
  • TP-LINK (EAP668-OUTDOOR HD) Omada AX3600 Indoor/Outdoor WiFi 6 Access Point, Dual Band, Up to 1024 Devices, 10G SFP+, PoE, Omada

TP-LINK (EAP668-OUTDOOR HD) Omada AX3600 Indoor/Outdoor WiFi 6 Access Point, Dual Band, Up to 1024 Devices, 10G SFP+, PoE, Omada

£642.86
VAT included
Stock status: Very low
Last 4 items
Delivered within 1-2 days.
Quantity

Delivery from %MINIMAL_DATE%



AX3600 Indoor/Outdoor WiFi 6 Access Point

  • High-Density Connectivity: Supports up to 1,024 devices.
  • Ideal for Outdoor Environments: IP68-rated weatherproof enclosure, 6 kV lightning protection, and a reliable operating range of -40 °C to +70 °C.
  • High-gain Detachable Antennas: 4x External N-Type Omni Antennas, 6 dBi Dual-Band (Antennas Included).
  • Ultra-Fast 3.6 Gbps Wi-Fi 6 Speeds: 1148 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz.
  • Multiple Ports for Flexible Network Solutions: 1x 10G SFP+ slot, 1x 2.5G PoE-In Port, and 1x Gigabit PoE-Out port.
  • PoE+/PoE++ Powered and PoE+ Out: Supports 802.3at/bt PoE input and 802.3at PoE output.
  • Advanced Features: Omada Mesh, Seamless Roaming, Bluetooth, and Centralized Cloud Management.


TP-LINK
EAP668-OUTDOOR HD
4 Items

Data sheet

Warranty
2 Years
Package Type
Retail
Additional Features
BluetoothWall/pole mounting (kits included)Concurrent Clients: 1,000+
Dimensions
240 x 80 x 312 mm (excluding antennas, waterproofing kit, and mounting kit)
Power Supply
802.3at/bt PoE
Interface(s)
1 x 2.5G Ethernet1 x Gigabit Ethernet1 x 10G SFP+
Package Contents
EAP668-Outdoor HD4 x External Dual-Band Omni AntennasInstallation GuideMounting KitWaterproof Kit
Power Consumption
802.3bt:EU: 20.2W (bt type3: af PSE out; bt type4: at PSE out)802.3at:EU: 20.2W (PSE disabled)Note: PoE out power not included. The PoE-out feature requires 802.3bt PoE input.
Wireless Standards
IEEE 802.11 a/b/g/n/ac/ax
Button(s)
Reset
Max Wired Transfer Rate
10 Gbps
Bands
Dual Band
Management
Omada AppRestore & BackupFirmware update via WebNTPCentralized ManagementCloud AccessEmail AlertsLED ON/OFF ControlManagement MAC Access ControlSNMP v1, v2c, v3SSHWeb-based Management
Frequency
2.4 GHz: Up to 1148 Mbps5 GHz: Up to 2402 Mbps
Suitable for Outdoor
Yes (Outdoor)
Environment
IP68-rated weatherproof enclosure6 kV lightning protectionOperating Temperature: -40–70°CStorage Temperature: -40–70°C (-40–158°F)Operating Humidity: 10–90% RH non-condensingStorage Humidity: 5–90% RH non-condensing
Security
VLANAccess ControlRogue AP DetectionCaptive Portal AuthenticationMaximum number of MAC Filter: 4,000Wireless Isolation between ClientsRogue AP DetectionWPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Protection
6KV Lightning Protection
Antenna(s)
4 x External High-gain Detachable Omni Antennas2.4 GHz: 6.0 dBi5 GHz: 6.0 dBi
Wireless Standard
802.11ax (Wi-Fi 6/6E)
Primary Function
Access Point
Access Point Mode
Yes (Access Point Mode)
Max Single Band Wi-Fi Rate
2402 Mbps
Wi-Fi Rating
AX3600
