- Online only
- Out of stock

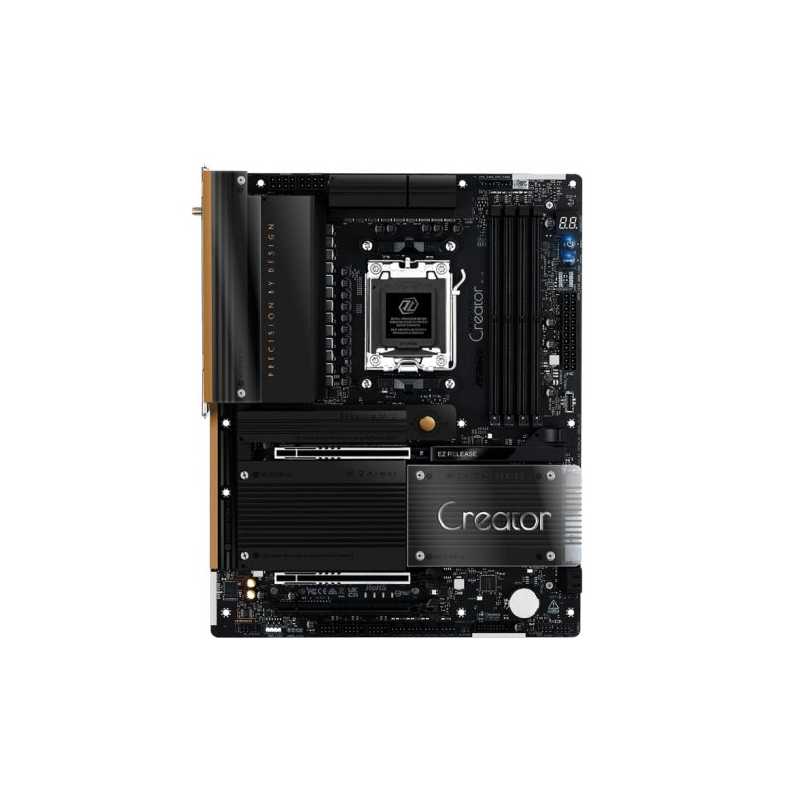

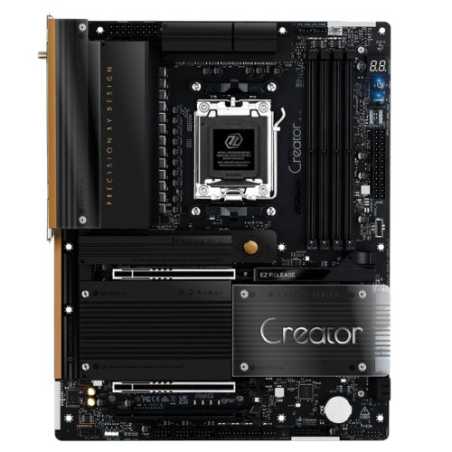

Asrock X870 TAICHI CREATOR, AMD X870, AM5, ATX, 4 DDR5, HDMI, 2 USB4, Wi-Fi 7, 10G & 5G LAN, 4x M.2
£329.25
VAT included
The X870 Taichi Creator features 10GbE and 5GbE LAN, dual USB4 Type-C, dual Gen5 M.2 slots, and dual PCIe 5.0 x16 slots with extra spacing for dual-GPU setups.
Its sharp lines, metallic edges, and mirrored nameplate reflect the signature Taichi Creator style—precision meets elegance.
- Supports AMD AM5 Socket Ryzen™ 9000, 8000 and 7000 Series Processors
- 18+2+1 Power Phase, 80A SPS for VCore+SOC
- 4 x DDR5 DIMMs
- Supports Dual Channel, up to 8000+ (OC)
- 2 PCIe 5.0 x16, 1 PCIe 3.0 x16
- Graphics Output Options: 1 HDMI, 2 USB4 Type-C
- Realtek ALC4082 7.1 CH HD Audio Codec, Nahimic Audio
- 2 Blazing M.2 (PCIe Gen5x4)
- 1 Hyper M.2 (PCIe Gen4x4)
- 1 Ultra M.2 (PCIe Gen3x4)
- 4 SATA3
- 2 USB4 Type-C (Rear)
- 1 USB 3.2 Gen2x2 Type-C (Front)
- 2 USB 3.2 Gen2 (Rear)
- 10 USB 3.2 Gen1 (6 Rear, 4 Front)
- 8 USB 2.0 (2 Rear, 6 Front)
- 10Gbps LAN, 5Gbps LAN
- 802.11be Wi-Fi 7 + Bluetooth
- Supports EZ Release Design, Toolless Multi-Layer M.2 Heatsink
X870 TAICHI CREATOR
Data sheet
- .
- 1 x Front Panel Type C USB 3.2 Gen2x21 x Dr. Debug with LED1 x Power Button with LED1 x Reset Button with LED
- RAM Speeds
- Up to 8000+(OC)
- Accessories
- 4 x SATA Data Cables1 x ASRock WiFi 2.4/5/6 GHz Antenna1 x ARGB Splitter Cable1 x Thermistor Cable
- USB Ports Supported
- Rear:2 x USB4 (40Gbps) Type-C (up to 15W PD 3.0)2 x USB 10Gbps Type-A6 x USB 5Gbps Type-A2 x USB 2.0Front:1 x USB 20Gbps Type-C4 x USB 5Gbps Type-A6 x USB 2.0
- Storage
- 4 x SATA III4 x M.2M.2_1 (2280) - PCIe 5.0 x4M.2_2 (2280) - PCIe 5.0 x4M.2_3 (2280) - PCIe 4.0 x4M.2_4 (2280) - PCIe 3.0 x4
- RAID
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- ATX
- Socket
- AMD AM5
- Chipset
- AMD X870
- DDR Type
- DDR5
- RAM Technology
- DDR5 (Dual Channel)ECC and Non-ECC, Un-buffered MemorySupports XMP and EXPO memory modules
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 256GB
- LAN
- 10GB LAN & 5GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- Back Panel I/O Ports
- 2 x Antenna1 x HDMI1 x Optical SPDIF Out2 x USB4 Type-C (40 Gb/s)2 x USB 3.2 Gen2 Type-A6 x USB 3.2 Gen1 Type-A2 x USB 2.02 x RJ-45 LAN1 x Clear CMOS Button1 x BIOS Flashback Button1 x Line Out Jack1 x Microphone Input Jack
- Internal I/O Connectors
- 1 x Thermistor Cable1 x Power LED and Speaker1 x RGB LED3 x Addressable LED2 x CPU Fan4 x Chassis Fan1 x AIO Pump Fan1 x 24 pin ATX2 x 8 pin 12V1 x Front Panel Audio3 x USB 2.02 x USB 3.2 Gen1
- CPU Support
- Click here for CPU support
- Package Type
- Retail
- Graphics Ports
- 1 x HDMI2 x USB4 (40Gbps) support USB Type-C display outputs
- Additional Features
- See Overview
- Graphics
- Integrated GraphicsGraphics specifications may vary between CPU types
- M.2 Slot(s)
- Yes (M.2)
- No. LAN Ports
- 2 x LAN
- Max LAN Speed
- 10GB LAN
- Wi-Fi
- Yes (Wi-Fi)
