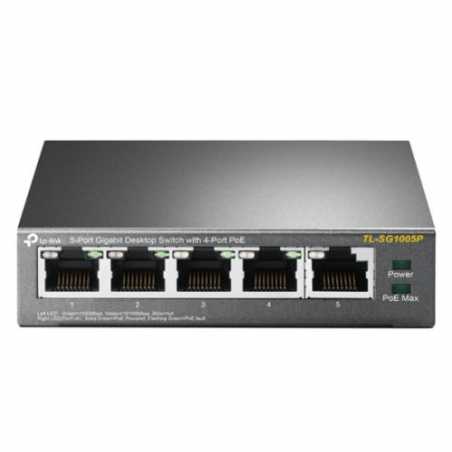

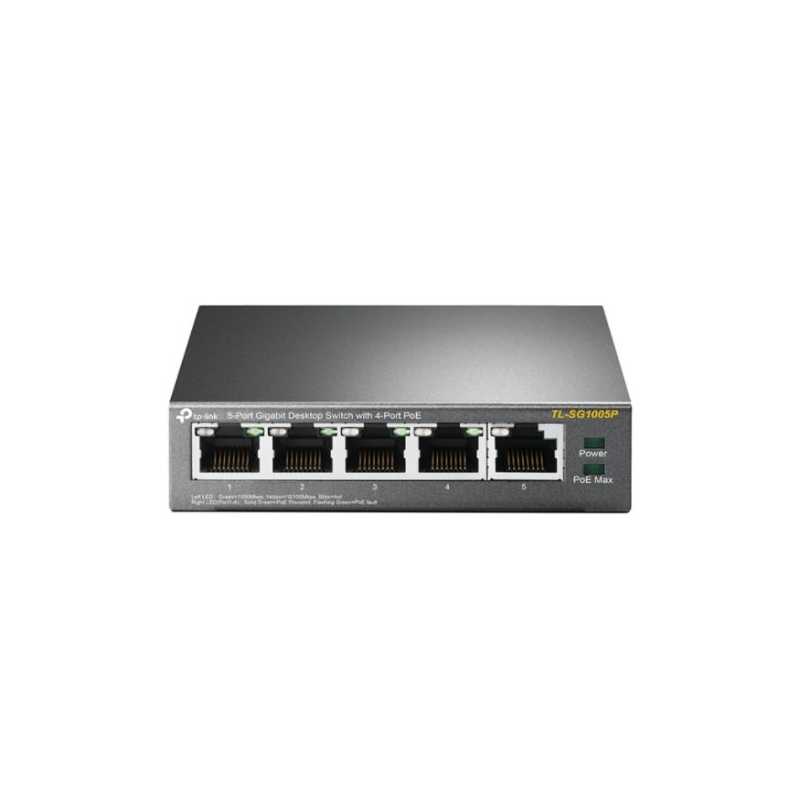

TP-Link TL-SG1005P 5-Port Metal Gigabit Desktop PoE Switch with 4-Port PoE+ (65W)
£49.44
VAT included
Delivered within 1-2 days.
- 5 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Requires no configuration and installation
What This Product Does
TL-SG1005P is a 5 10/100/1000Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
TL-SG1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 56W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (Port 1=Port 2=Port 3>Port 4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 56W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, no power will be supplied to Port 4.
Easy To Use
TL-SG1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link’s TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
Professional High-Power 5-Port Gigabit Switch with 4 PoE+ Ports - plug and play
Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 4 x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play
No Configuration Required
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
QoS For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.
Key Features
5 x 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports
Requires no configuration and installation
Specifications
Interface
5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate
7.44 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
16 KB
Switching Capacity
10 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x1.0 in (99.8 x 98 x25 mm)
Max Power Consumption
4.29 W (220/50 Hz. no PD connected)
74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
14.63 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store-And-Forward
Certification
FCC, CE, RoHS
Package Contents
TL-SG1005P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0–40 degrees (32–104 C)
Storage Temperature: -40–70 degrees (-40–158 C)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
Dedicated 4-Port PoE+ Switch (65 W Budget) for Numerous Applications
Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget for the 4 x PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.
Plug and Play
No Configuration Required
Intelligent Power Management
When total power consumption exceeds 65 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.
Advanced Functions for Higher Performance
QoS For Fluent Online Experience
Administrators can designate the priority of traffic based on QoS, for example, to ensure that voice and video applications remain clear and lag-free.
IGMP Snooping Traffic Optimization for IPTV
IGMP Snooping optimizes multimedia traffic delivery, to ensure a better network experience especially for applications like IPTV.
Durable Metal Casing
The interior components of TL-SG1005P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG1005P delivers switching performance you can depend on.
Key Features
5 x 10/100/1000 Mbps RJ45 ports
With four PoE+ ports, transfers data and power on one single cable
Works with IEEE 802.3af/at compliant PDs
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for all PoE ports
Requires no configuration and installation
Specifications
Interface
5 x 10/100/1000Mbps RJ45 Ports
AUTO Negotiation
AUTO MDI/MDIX
Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
Fan Quantity
Fanless
External Power Supply
External Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate
7.44 Mpps
PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Ports 1–4
Power Supply: 65 W
Mac Address Table
2K
Jumbo Frame
16 KB
Switching Capacity
10 Gbps
Dimensions ( W x D x H )
3.9 x 3.9 x1.0 in (99.8 x 98 x25 mm)
Max Power Consumption
4.29 W (220/50 Hz. no PD connected)
74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation
14.63 BTU/h (no PD connected)
253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features
Compatible With IEEE 802.3af/at Compliant PDs
Mac Address Auto-Learning And Auto-Aging
IEEE 802.3x Flow Control
802.1p/DSCP QoS
IGMP Snooping
Transfer Method
Store-And-Forward
Certification
FCC, CE, RoHS
Package Contents
TL-SG1005P
Power Adapter
Installation Guide
Environment
Operating Temperature: 0–40 degrees (32–104 C)
Storage Temperature: -40–70 degrees (-40–158 C)
Operating Humidity: 10–90% RH non-condensing
Storage Humidity: 5–90% RH non-condensing
TL-SG1005P
17 Items
Data sheet
- Data Transfer Rate
- 10/100/1000 Mbps
- Warranty
- Limited Lifetime
- Package Type
- Retail
- Package Weight
- 0.2700 kg
- Dimensions
- 3.9 x 3.9 x 1.0 in. (99.8 x 98 x 25 mm)
- Speed
- 10/100/1000
- Power Supply
- External Power Adapter (Output: 48VDC / 1.25A)
- Interface(s)
- 5 x 10/100/1000Mbps RJ45 PortsAUTO Negotiation/AUTO MDI/MDIX
- Package Contents
- TL-SG1005PPower AdapterInstallation Guide
- Ports
- 5 Ports
- Environment (℃)
- Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Rackmountable
- No
- Management
- No
- Number of Ports
- 5
- PoE Ports (RJ45)
- Standard: 802.3 af compliantPoE Ports: Port1- Port4Power Supply: 56W
- Bandwidth
- 10Gbps
- Environment
- Operating Temperature: 0C~40C (32F~104F)Storage Temperature: -40C~70C (-40F~158F)Operating Humidity: 10%~90% non-condensingStorage Humidity: 5%~90% non-condensing
- Advanced Functions
- Compatible With IEEE 802.3af Compliant PDsPriority FunctionMac Address Auto-Learning And Auto-AgingEEE802.3x Flow Control802.1p/DSCP QoSIGMP Snooping
- Transfer Method
- Store-And-Forward
- Mac Address Table
- 2K
- POE
- Yes
- RJ45 Data Transfer Rate
- 10/100/1000 Mbps
- Managed/Unmanaged
- Unmanaged
- PoE capable
- Yes
