- Out of stock

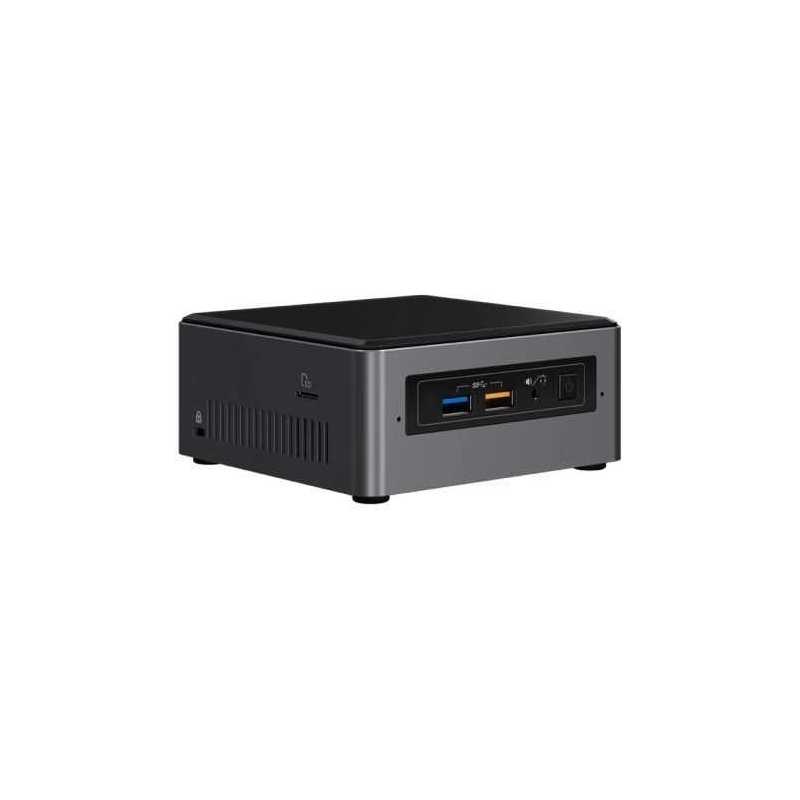

Intel NUC Tall Baby Canyon Barebone, i7-7567U, M.2 & 2.5" SATA, Wi-Fi, Btooth, USB Type C Gen2, HDMI, SDXC - No RAM/SSD/OS
- 7th generation Intel® Core™ i7-7567U processor
- Intel® Iris™ Plus Graphics 650
- Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz)
- 1x SATA3 port for connection to 2.5" HDD or SSD
- M.2 slot with flexible support for a 42 or 80 mm M.2 SSD
- Intel® Optane™ Memory ready
- Intel® Dual Band Wireless-AC 8265 and Bluetooth 4.2
- Back panel DC power connector (12–19V)
- One full-size HDMI 2.0 display port supporting 8 channel audio (7.1 surround sound)
- Intel® Gigabit LAN
- Two USB 3.0 ports on the back panel
- Thunderbolt™ 3 port with support for USB 3.1 gen 2, DisplayPort 1.2 and 40 Gb/s Thunderbolt
- Kensington lock support
- Micro SD card slot
- Two USB 3.0 ports (including one charging port) on the front panel
- Front panel headphone/microphone jack
- Dual-array front microphones
Get ready to play hard and fast while still taking advantage of the performance you need for content creation, photo editing, or complex work. The Intel® NUC Kit NUC7i7BNH is built with a dual-core 7th generation Intel® Core™ i7 processor and has Intel® Turbo Boost Technology 2.0 for unprecedented power and responsiveness to help your productivity soar.
The Intel NUC7i7BNH is Intel® Optane™ Memory ready which makes you ready for the future. By easily installing and pairing Intel Optane Memory with high capacity HDD storage media, you get amazing performance and responsiveness as well as shorter boot times, faster application launches, and more responsive browsing—exactly what you want for play or work.
New Features Let You Use Windows® 10 To Its Full Potential
The Intel NUC7i7BNH has some cool new features including a dual-array front microphone so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-colour LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music, movies, and games. Or listen with headphones via the front microphone/audio jack. The choice is yours.
With four USB 3.0 ports, including a charging port, you can connect a USB keyboard, mouse, and printer, and still have room to charge your phone or connect external storage.
Intel® Iris™ Plus Graphics and Thunderbolt™ 3
Intel® Iris™ Plus Graphics lets you see images in brilliant 4K and adds better definition and clarity, letting you watch theatre-quality 4K videos in your living room or see the sneaky moves your opponent is trying to make on your favourite game. The Intel NUC7i7BNH can connect up to three 4K monitors so you can spread your game across screens. The kit also comes with Thunderbolt™ 3 which supports up to 40 Gbps transfer speeds, connection to external graphics, and has built-in 10 GbE for networking with another Thunderbolt 3 system.
Cut The Cords, Not The Performance
The Intel NUC7i7BNH comes with Intel® 802.11ac wireless, Intel’s fastest wireless available today, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud, and with built-in Bluetooth* 4.2, you can connect wireless peripherals like headsets and keyboards.
- 7th generation Intel® Core™ i7-7567U processor
- Intel® Iris™ Plus Graphics 650
- Two DDR4 SO-DIMM sockets (up to 32 GB, 2133 MHz)
- 1x SATA3 port for connection to 2.5" HDD or SSD
- M.2 slot with flexible support for a 42 or 80 mm M.2 SSD
- Intel® Optane™ Memory ready
- Intel® Dual Band Wireless-AC 8265 and Bluetooth 4.2
- Back panel DC power connector (12–19V)
- One full-size HDMI 2.0 display port supporting 8 channel audio (7.1 surround sound)
- Intel® Gigabit LAN
- Two USB 3.0 ports on the back panel
- Thunderbolt™ 3 port with support for USB 3.1 gen 2, DisplayPort 1.2 and 40 Gb/s Thunderbolt
- Kensington lock support
- Micro SD card slot
- Two USB 3.0 ports (including one charging port) on the front panel
- Front panel headphone/microphone jack
- Dual-array front microphones
Get ready to play hard and fast while still taking advantage of the performance you need for content creation, photo editing, or complex work. The Intel® NUC Kit NUC7i7BNH is built with a dual-core 7th generation Intel® Core™ i7 processor and has Intel® Turbo Boost Technology 2.0 for unprecedented power and responsiveness to help your productivity soar.
The Intel NUC7i7BNH is Intel® Optane™ Memory ready which makes you ready for the future. By easily installing and pairing Intel Optane Memory with high capacity HDD storage media, you get amazing performance and responsiveness as well as shorter boot times, faster application launches, and more responsive browsing—exactly what you want for play or work.
New Features Let You Use Windows® 10 To Its Full Potential
The Intel NUC7i7BNH has some cool new features including a dual-array front microphone so you can take advantage of Cortana’s* capabilities if you install Windows® 10 with no additional hardware needed. There’s also a front power button and a multi-colour LED ring so you can personalize the NUC with the look you want, along with 7.1 surround sound via the HDMI* port so that you can be deeply immersed in your music, movies, and games. Or listen with headphones via the front microphone/audio jack. The choice is yours.
With four USB 3.0 ports, including a charging port, you can connect a USB keyboard, mouse, and printer, and still have room to charge your phone or connect external storage.
Intel® Iris™ Plus Graphics and Thunderbolt™ 3
Intel® Iris™ Plus Graphics lets you see images in brilliant 4K and adds better definition and clarity, letting you watch theatre-quality 4K videos in your living room or see the sneaky moves your opponent is trying to make on your favourite game. The Intel NUC7i7BNH can connect up to three 4K monitors so you can spread your game across screens. The kit also comes with Thunderbolt™ 3 which supports up to 40 Gbps transfer speeds, connection to external graphics, and has built-in 10 GbE for networking with another Thunderbolt 3 system.
Cut The Cords, Not The Performance
The Intel NUC7i7BNH comes with Intel® 802.11ac wireless, Intel’s fastest wireless available today, for connectivity right out-of-the-box. This makes it simple to immediately access files in the cloud, and with built-in Bluetooth* 4.2, you can connect wireless peripherals like headsets and keyboards.
Data sheet
- Processor
- Intel Core i7-7567U (3.50 GHz)
Intel i7 - Wireless
- Intel Dual Band Wireless-AC 8265
- Memory
- None
- Optical Drive
- None
- Warranty
- 3 Years
- Chipset
- System-on-Chip
- LAN
- GB LAN
- Package Type
- Retail
- Package Weight
- 1.1900 kg
- Additional Features
- Security lock slot (cable lock sold separately)
- Dimensions
- 115 x 51 x 111 mm (WxHxD)
- Operating System
- No O/S
- Memory Details
- 2 x DDR4 SO-DIMM2133 MHz, 1.2VMax 32GB
- Processor Details
- Dual Core4.0GHz boost
Dual Core4.0GHz turbo - Chassis
- Intel NUC
- Hard Drive
- None
- Sound
- High Definition Audio7.1 channel surround
- Keyboard and Mouse
- No
- Graphics
- Intel Iris Plus Graphics 650
- Tower / Small Form Factor
- Small Form Factor
- Remote Control
- -
- Supported Drives
- 1 x M.2, 2242/22801 x 2.5" SATA
- Back I/O
- 1 x USB 3.1 Gen 2 / DP 1.21 x GB LAN1 x HDMI 2.02 x USB 3.01 x WiFi 802.11ac/BT4.2 Module
- Power Unit
- 65 W
- Bluetooth
- Bluetooth 4.2
Specific References
- EAN13
- 5032037088718
