- Out of stock

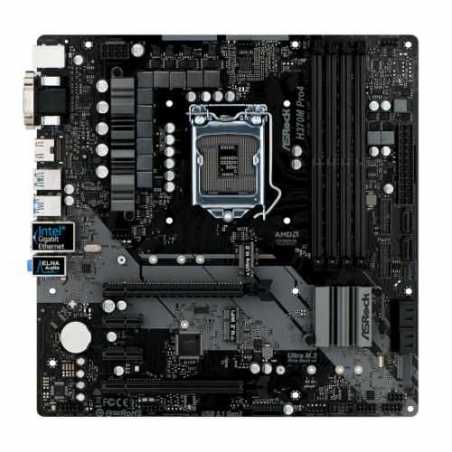

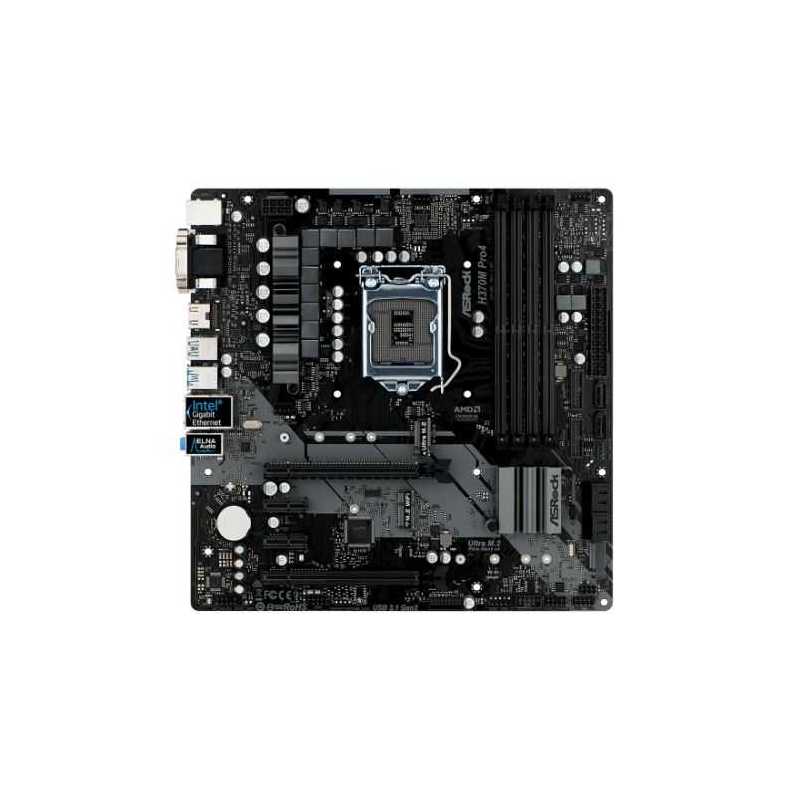

Asrock H370M PRO4, Intel H370, 1151, Micro ATX, DDR4, VGA, DVI, HDMI, XFire, Dual M.2
£104.45
VAT included
- Supports 8th Generation Intel® Core™ Processors (Socket 1151)
- 10 Power Phase Design
- Supports DDR4 2666
- 2 PCIe 3.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
- AMD Quad CrossFireX™
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC892 Audio Codec), ELNA Audio Caps
- 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x1 & SATA3)
- 2 USB 3.1 Gen2 10Gb/s (1 Type-A + 1 Type-C)
- 6 USB 3.1 Gen1 (4 Front, 2 Rear)
- Intel® Gigabit LAN
Dual M.2 For SSD
Equipped with M.2 slot that supports both SATA3 6Gb/s and PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSD.
Intel® Optane™ Memory Ready
Supports Intel® Optane™ memory technology and Intel® Optane™ storage technology that redefines a new standard of high performance and responsiveness.
ASRock Intel® 4-Layer Memory POOL Technology
POOL (Planes On Outer Layers) technology allows 4-layer boards to utilize stripline routing instead of micro-strip routing, making motherboard having better electrical properties and performance.
Super Alloy Motherboard
Premium 45A Power Choke
Compared to traditional chokes, ASRock’s premium 45A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
10 Power Phase
Designed with an 10 Power Phase Design, this motherboard provides completely smooth power delivery to the CPU and offers unmatched overclocking capabilities and enhanced performance with the lowest temperature.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Dual USB 3.1 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.1 Gen2 ports built on the rear i/o for supporting next generation USB 3.1 Gen2 devices and to deliver up to 10 Gbps data transfer rates.
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
Triple Monitor
Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
ELNA Audio Caps
Who says high quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.
A-Tuning
A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Description
Specification
- Motherboard Type: Desktop
- Form Factor: Micro ATX
- Socket: 1151 - Coffee Lake
- Chipset: Intel H370
- #Hide#DDR Type: DDR4
- RAM Technology: DDR4 (Dual Channel)
- RAM Slots: 4 x DIMM
- RAM Speeds: 2666 / 2400 / 2133 MHz
- Maximum Memory: 64GB
- Graphics: Supports Intel HD Graphics
- Graphics Ports: 1 x VGA
1 x DVI-D
1 x HDMI - Multi-GPU Support: Supports AMD Quad CrossFireX
- PCI Express: 2 x PCIe 3.0 x16
2 x PCIe 3.0 x1 - PCI: -
- Storage: 6 x SATA III
1 x M.2 Socket (2230/2242/2260/2280) - SATA & PCIe
1 x M.2 Socket (2230/2242/2260/2280) - PCIe - RAID: "RAID 0, 1, 5, 10"
- Wireless: -
- LAN: GB LAN
- Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- USB Ports Supported: "2 x USB 3.1 Gen2 Type-A & C (at back)
6 x USB 3.1 Gen1 (2 at back, 4 at mid-board)
5 x USB 2.0 (2 at back, 3 at mid-board)" - Back Panel I/O Ports: 2 x PS/2
1 x D-Sub
1 x DVI-D
1 x HDMI
2 x USB 2.0
1 x USB 3.1 Gen2 Type-A
1 x USB 3.1 Gen2 Type-C
2 x USB 3.1 Gen1
1 x RJ-45 LAN
HD Audio Jacks - Internal I/O Connectors: 1 x COM Port
1 x TPM
1 x Chassis Intrusion and Speaker
1 x CPU Fan
1 x CPU/Water Pump Fan
2 x Chassis/Water Pump Fan
1 x 24 pin ATX
1 x 8 pin 12V
1 x Front Audio
2 x USB 2.0
2 x USB 3.1 Gen1 - CPU Support: See manufacturers link (next to product images)
- Accessories: Quick Installation Guide
Support CD
I/O Shield
2 x SATA Data Cables
3 x Screws for M.2 Sockets - Package Type: Retail
- Additional Features: See Overview
- Package Weight: 1.0800 kg
- Warranty: 3 Year Replacement Warranty
H370M PRO4
Data sheet
- PCI Express
- 2 x PCIe 3.0 x16, 2 x PCIe 3.0 x1
- Wireless
- -
- RAM Speeds
- 2666 / 2400 / 2133 MHz
- Accessories
- Quick Installation Guide, Support CD, I/O Shield, 2 x SATA Data Cables, 3 x Screws for M.2 Sockets
- USB Ports Supported
- "2 x USB 3.1 Gen2 Type-A & C (at back), 6 x USB 3.1 Gen1 (2 at back, 4 at mid-board), 5 x USB 2.0 (2 at back, 3 at mid-board)"
- Storage
- 6 x SATA III, 1 x M.2 Socket (2230/2242/2260/2280) - SATA & PCIe, 1 x M.2 Socket (2230/2242/2260/2280) - PCIe
- RAID
- "RAID 0, 1, 5, 10"
- Warranty
- 3 Year Replacement Warranty
- Motherboard Type
- Desktop
- Form Factor
- Micro ATX
- Socket
- 1151 - Coffee Lake
- Chipset
- Intel H370
- DDR Type
- DDR4
- RAM Technology
- DDR4 (Dual Channel)
- RAM Slots
- 4 x DIMM
- Maximum Memory
- 64GB
- Multi-GPU Support
- Supports AMD Quad CrossFireX
- PCI
- -
- LAN
- GB LAN
- Audio
- 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)
- Back Panel I/O Ports
- 2 x PS/2, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 2 x USB 2.0, 1 x USB 3.1 Gen2 Type-A, 1 x USB 3.1 Gen2 Type-C, 2 x USB 3.1 Gen1, 1 x RJ-45 LAN, HD Audio Jacks
- Internal I/O Connectors
- 1 x COM Port, 1 x TPM, 1 x Chassis Intrusion and Speaker, 1 x CPU Fan , 1 x CPU/Water Pump Fan, 2 x Chassis/Water Pump Fan, 1 x 24 pin ATX, 1 x 8 pin 12V, 1 x Front Audio, 2 x USB 2.0, 2 x USB 3.1 Gen1
- CPU Support
- See manufacturers link (next to product images)
- Package Type
- Retail
- Package Weight
- 1.0800 kg
- Graphics Ports
- 1 x VGA, 1 x DVI-D, 1 x HDMI
- Additional Features
- See Overview
- Graphics
- Supports Intel HD Graphics
